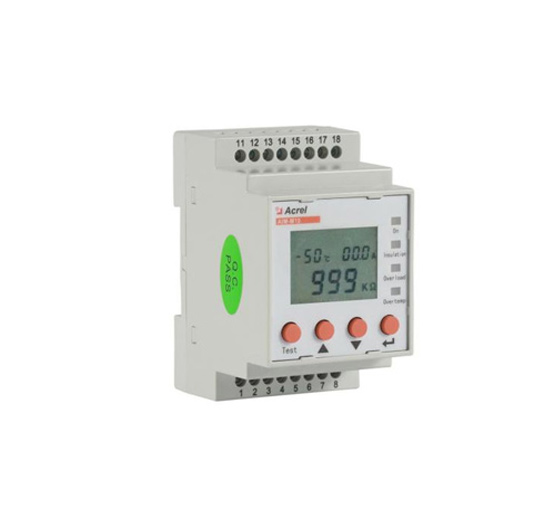

Acrel AIM-M10 Medical Insulation Device

AIM-M10 medical insulation device instrument adopts advanced microcontroller technology, which has high integration, compact size, convenient installation and integrates intelligence, digitalization and networking in one. It is ideal selection for insulation monitoring of isolation power system in Class 2 medical locations such as operating room and intensive care unit.

AIM-M10 isolated power supply system is usually combined with AITR series medical isolation transformer, AKH-0.66P26 current transformer and AID10/150 centralized alarm display device.

  • Insulation monitoring for medical IT systems

  • Load and temperature monitoring of isolation transformer

  • Device disconnection monitoring

Parameters of AIM-M10 Medical Insulation Device


AUX PowerVoltageAC220V±10%Temperature monitoringThermal resistor2 Pt100
Power consumption≤5VAMeasuring range-50~+200℃
Insulation MonitoringResistance measuring range10~999kΩAlarm value range0~+200℃
Response value50~999kΩAlarmOutput mode1 Relays
Relative uncertainty±10%outputContact ratingAC 250V/3A

DC 30V/3A
Response time≤3sEnvironmentOperating temperature-10~+55℃
Permissible system leakage capacitance Ce≤5uFTransport temperature-25~+70℃
Measuring voltage Um≤12VStorage temperature-25~+70℃
Measuring current Im≤50uARelative humidity5%-95%, No condensation
Impedance Zi≥200kΩAltitude≤2500m
Internal DC resistance Ri≥240kΩIP degreeIP30
Permissible extraneous DC voltage Ufg≤DC280VRated impulse voltage / pollution degree4KV/Ⅲ
Load Current MonitoringMeasuring Value2.1~50AEMCIEC 61326-2-4
Alarm Value5~50ACommunicationRS485(Modbus-RTU)

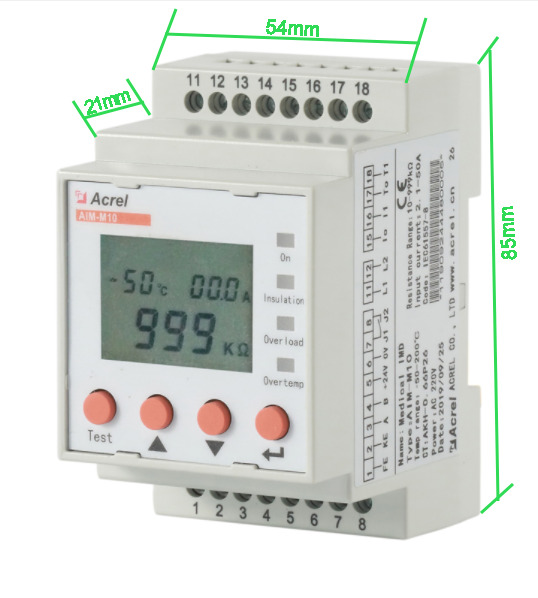

Diagram of AIM-M10 Medical Insulation Device


Diagram of AIM-M10 Medical Insulation Device

Package of AIM-M10 Medical Insulation Device


MINIMUM PACKAGEInsulation Diagram Medical DevicePackage Of Aim M10 Medical Insulation DeviceAim M10 Medical Insulation DeviceAim M10 Medical Insulation Device
MINIMUM PACKAGEPackage dimensions(1PC)Pakage Weight(1 PC)
170*150*130mm0.169Kg
WHOLE BOX PACKAGEPackage dimensions(36PCS)Pakage Weight(36 PCS)
450*240*250mm6.084kG
PRODUCT HS CODE8543709990
