Acrel ADW310 Single Phase IOT Energy Meter

Acrel ADW310 wireless energy meter is mainly used to measure the active energy of low-voltage network. It has the advantages of small size, high precision, rich functions, etc., and has many optional communication methods.It can be flexibly installed in the distribution box to meet the needs of power metering, operation and maintenance supervision or power monitoring for different areas and different loads.

ADW310 can support RS485 communication, Lora, 4G and other wireless communication methods. The current sampling mode of the transformer is convenient for users to install and use in different occasions.



Wireless Commmunication: 4G, WiFi


Rated Voltage: AC 220V


Rated Current: AC 20(100)A


Measurement: U, I, P, Q, Kwh, Varh, F, PF


I/O Function: one channel DI/DO


Temperature: two channels temperature

Products

Parameters of ADW310 Single Phase IOT Energy Meter

Voltage Input	Rated Voltage	220V
	Reference Frequency	50Hz
	Power Consumption	Each phase<0.5VA
Current Input	Input Current	AC 20(100)A
	Starting Current	1‰Ib(0.5S class), 4‰Ib(1 class)
	Power Consumption	Each phase<1VA
Auxiliary Power	Voltage Supply	AC 85~265V
Auxiliary Power	Power Consumption	<2W
Measuring Performance	Standards	GB/T17215.322-2008，GB/T17215.321-2008
	Compliant Active Energy Accuracy	Class 1
	Temperature Accuracy	±2℃
Pulse	Pulse Width	80±20ms
Pulse	Pulse Constant	1600imp/kWh
Communication	Wirelese	470MHz wireless transmission, transmission distance in open space: 1km; 4G
	Interface	RS485(A、B)
	Medium	Shielded Twisted Pair
	Protocol	MODBUS-RTU、DL/T 645-07

Video of ADW310 Single Phase IOT Energy Meter

Application of ADW310 Single Phase IOT Energy Meter

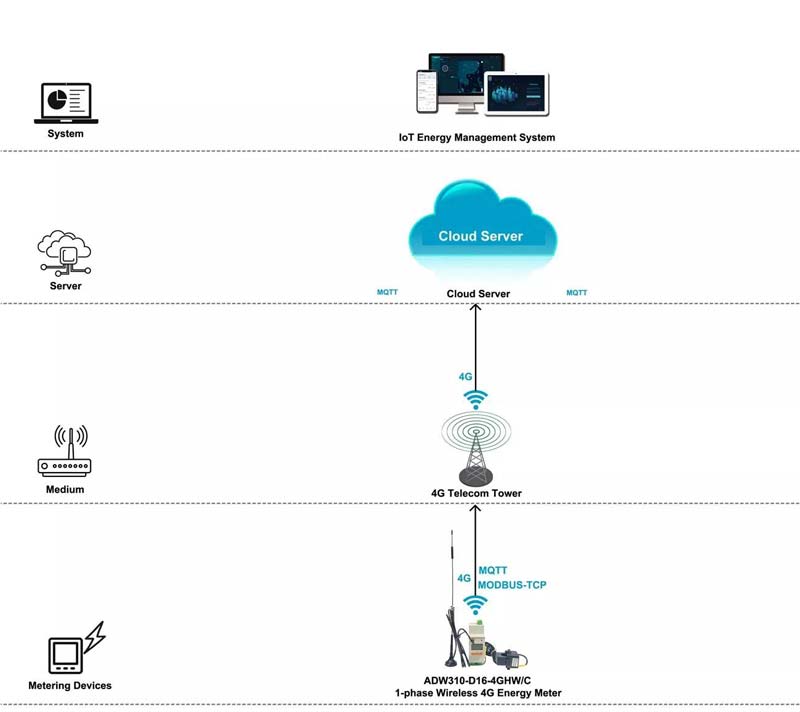

1. 4G wireless communication solution

4g Wireless Communication Solution

2. WIFI wireless communication solution

Wifi Wireless Communication Solution

Features of ADW310 Single Phase IOT Energy Meter

Online & Remote Energy Monitoring

● Paired with Acrel IoT Energy Monitoring System

● PC Access via IoT EMS WEB

● Mobile Phone Access via IoT EMS APP

● 4G Wireless Communication (Global)

● WiFi Wiress Communication (2.4GHz)

● Support MQTT, MODBUS-TCP protocol

● Support RS485 interface (MODBUS-RTU)

Features of ADW310 Single Phase IOT Energy Meter

Multiple Extra Function

● 1-channel DO (Digital Ouput)

● 1-channel DI (Digital Input)

● 2-channel Cable Temperature Monitoring

● Active Pulse Output

Features of ADW310 Single Phase IOT Energy Meter

Alarm Function

● Over/Under Current

● Over/Under Voltage

● Over/Under Power

Features of ADW310 Single Phase IOT Energy Meter

Wiring of ADW310 Single Phase IOT Energy Meter

Dimension of ADW310 Single Phase IOT Energy Meter

CT for ADW310:

CT for ADW310

Package of ADW310 Single Phase IOT Energy Meter

PACKAGE
MINIMUM PACKAGE	Package dimensions(1 PC) 170150130mm	Pakage Weight(1 PC) 0.25Kg
WHOLE BOX PACKAGE	Package dimensions(36 PC) 540530490mm	Pakage Weight(36PC) 10.00Kg
PRODUCT HS CODE	9028301300
