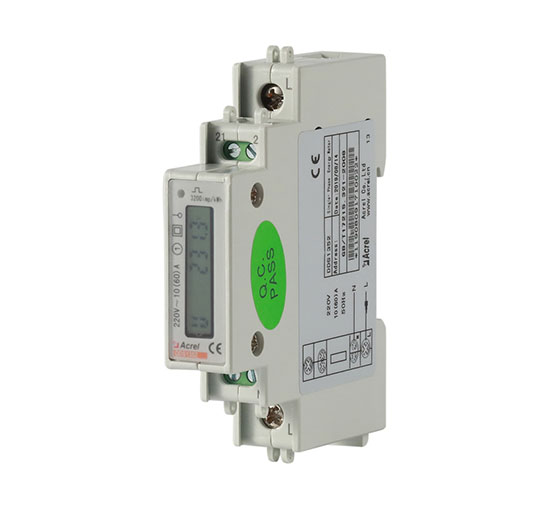

Acrel ADL10-E Single Phase Din Rail Energy Meter

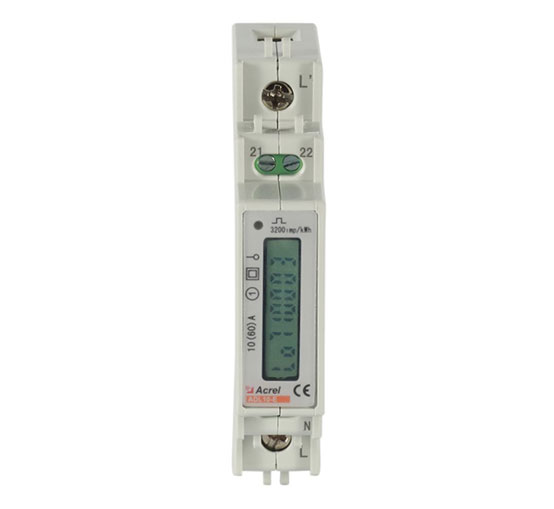

Name: ADL10-E Single Phase Din Rail Energy Meter
Brand: Jiangsu Acrel Electrical Manufacturing Co., LTD.

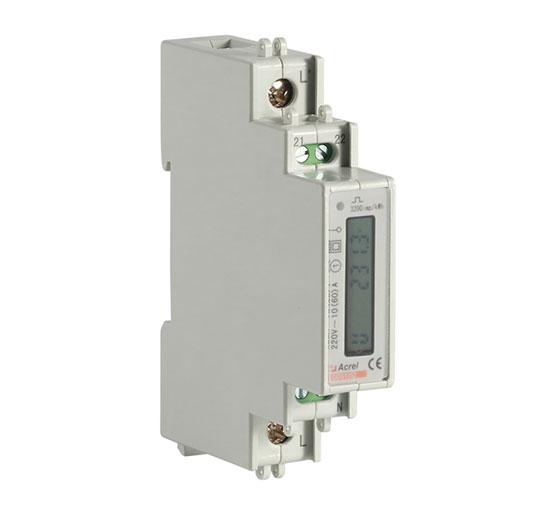

Acrel ADL10-E single phase energy meter is a new generation of miniature energy meter launched by Acrel Electric. Set measurement, metering, LCD display, communication in one, with high stability, low power consumption, power failure data storage, and other advantages.

It can be flexibly installed in the distribution box, to achieve different regions and different loads of the item of electricity measurement.



Measurement of kWh


Measurement of electrical parameters


low power consumption


Small volume easy installation

Products

Parameters of ADL10E Single Phase Din Rail Energy Meter

Technical parameter descriptions
project		performance parameter
Specification		1 phase
Voltage	Rated voltage	AC 220V
	Rated frequency	50Hz
	Consumption	<10VA
Current	Basic current	10A
	Maximum current	60A
	Starting current	4‰Ib
	Consumption	<4VA
Measurement performance	Accurary of measuring	kWh Class 1.0
Measurement performance	Range of measuring	0-99999999kwh
Clock accuracy		Error≤0.5s/d
Active pulse	Width	80±20ms
Active pulse	Constant	1000imp/kWh
Communication	Interface	RS485(A+、B-)
	Connection mode	Shielded twisted pair conductors
	Protocol	Modbus-RTU
Temperature range	Work	-25℃-55℃
Temperature range	Storage	-40℃-70℃
Mechanical performance	Length × Width × Height	18mm×96mm×70mm
Mechanical performance	Strong current terminal Torque	<4Nm
Humidity		≤95%(No condensation)
Altitude		<2000m

Video of Single Phase Din Rail Wifi Smart Energy Meter

Diagram of ADL10E Single Phase Din Rail Energy Meter

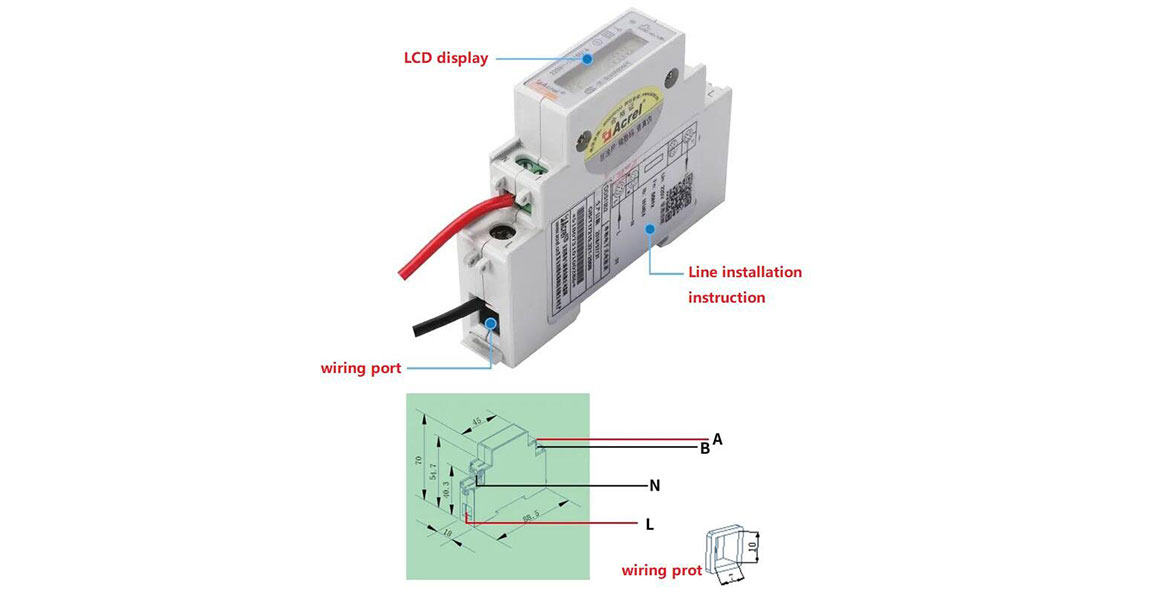

ADL10 single phase energy meter used the direct connecting method. Please pay attention to the direction of input and output while wiring and screw tightly (torque less than 12Nm) prevent the meter from the abnormal work.The meter shows total energy first while turning on and then shows voltage, current and power, etc. in turn.

Diagram of ADL10E Single Phase Din Rail Energy Meter

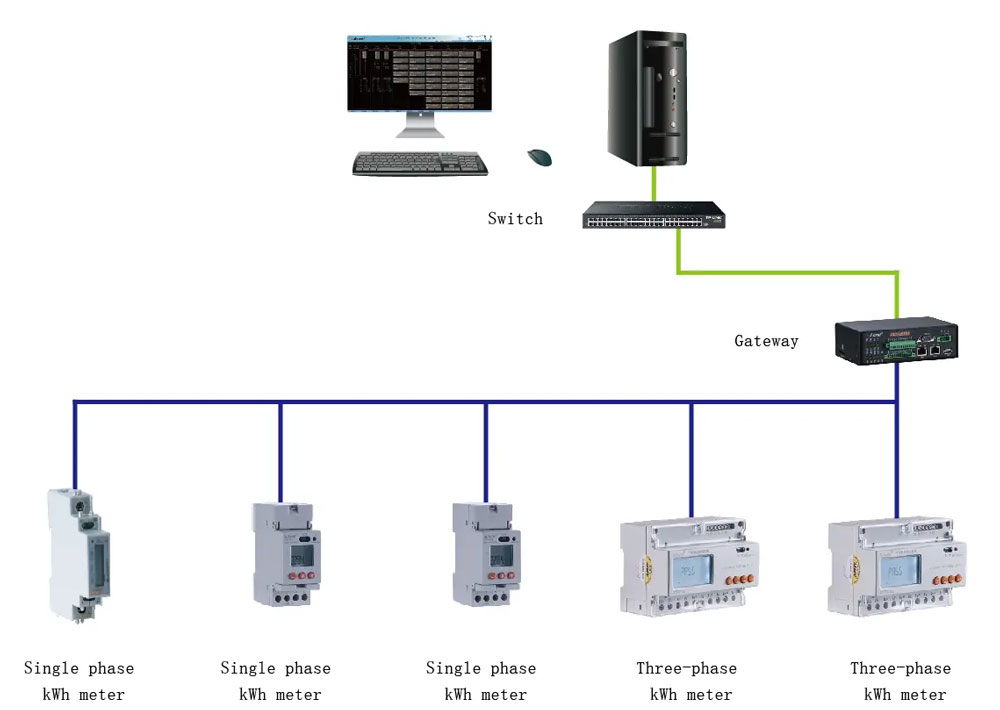

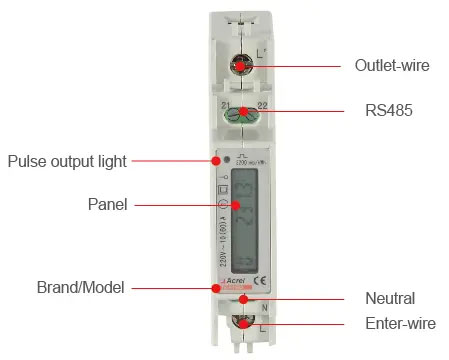

Features of ADL10E Single Phase Din Rail Energy Meter



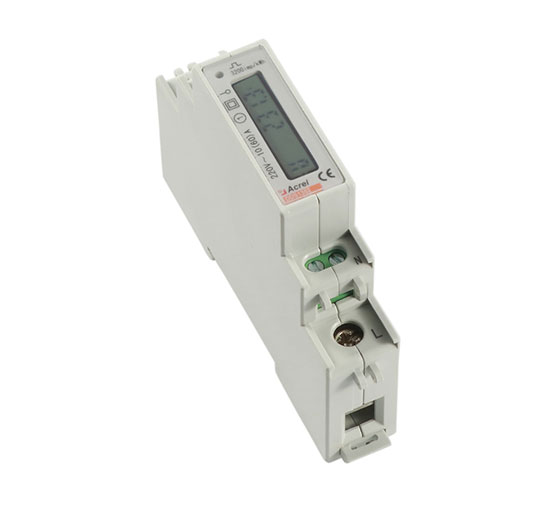

Small Compact Size ● Dimension (LWH): 18mm88mm70mm

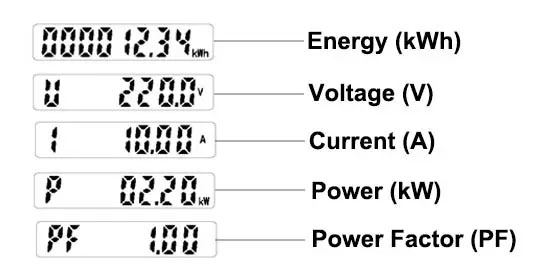

Diverse Electricity Parameters Measurement ● U (Voltage) ● I (Current) ● P (Power) ● Q (Reactive power) ● S (Apparent power) ● PF (Power factor) ● kWh (Kilowatt-hours) ● kVarh (Kilovar-hours)
DIN Rail Installation ● 35mm standard DIN rail
LCD Display ● 8 digits
