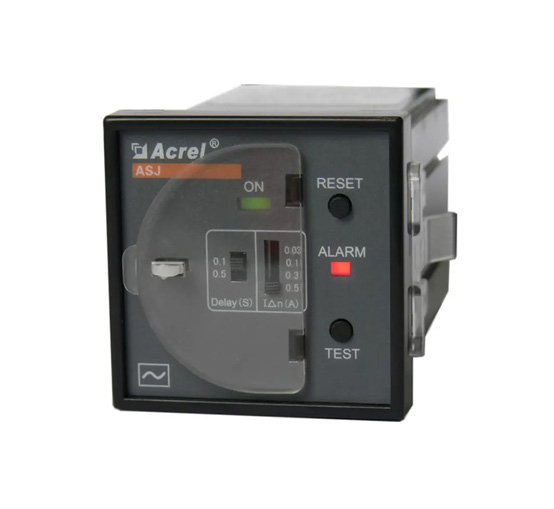

Acrel ASJ20-LD1C Residual Current Relay

Name: ASJ20-LD1C Residual Current Relay
Brand: Jiangsu Acrel Electrical Manufacturing Co., LTD.

ARTM-8/24 series multi-input temperature controller can measure and control multi temperature signals.

It is mainly applied to temperature survey and control in thermal power plant and water power plant.

Video of ASJ20-LD1C Residual Current Relay

Technical parameter		Index
Technical parameter		Type AC
Input	Rated residual action current I△n	0.03、0.1、0.3、0.5(A)
	Non-driving time oflimitation △t	0.1、0.5(s)
	Rated residualnon-action current I△no	50%I△n
	performance characteristics	simple sinusoidal alternating current
	frequency	50Hz±5Hz
Action error		-20%～-10%lan
Output	output mode	one is the normal closing and the others for the transformation
	contact capacity	5A 250VAC 5A 30VDC
	reset mode	theon-the-spotoneand the long-distanceone,
Power supply	voltage range	AC110V、AC220V(permissibleerror±10%)
Power supply	power dissipation	≤5W
Power frequency withstand voltage		The effective value of alternating current between the power supply,input and output: 2kV/Imin
Under thenormaloperation	temperature	operating temperature:-20℃～+55℃storage temperature:-30℃～+70℃
	humidity	≤95%RH,with moisture condensation,and corrosive gas place
	height above sea level	≤2000m
	class of pollution	Grade three
	installation category	Type III
