Acrel ​AIM-T300 Industrial Isolated Monitoring Device

An AIM-T300 Industrial Isolated Monitoring Device recognizes insulation faults and immediately reports that the value has fallen below the minimum. This prevents operational interruption caused by a second, more severe insulation fault.

Parameters of AIM-T300 Industrial Isolated Monitoring Device


Auxiliary Power SupplyVoltageAC85-265V
Frequency40-60Hz
Power Consumption<8W
Voltage RangeSystem VoltageAC/DC 0~480V
OutputRelay outputCapacityFault WarningAC 250V/3A DC 30V/3A
Fault alarmAC 250V/3A DC 30V/3A
CommunicationInterfaceRS485
ProtocolMODBUS-RTU

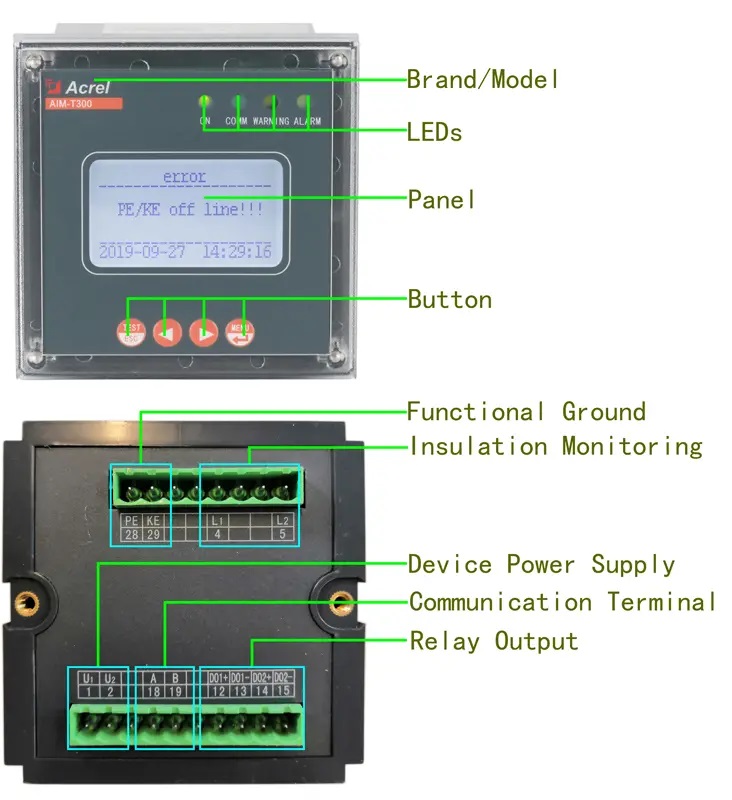

Diagram of AIM-T300 Industrial Isolated Monitoring Device


Diagram of AIM-T300 Industrial Isolated Monitoring Device

Package of AIM-T300 Industrial Isolated Monitoring Device


MINIMUM PACKAGEpackage-of-aim-t500-industrial-insulation-monitoring-device1.jpgpackage-of-aim-t500-industrial-insulation-monitoring-device.jpgaim-t500-industrial-insulation-monitoring-device1.jpgpackage-of-aim-m10-medical-insulation-device.jpg
MINIMUM PACKAGEPackage dimensions(1PC)Pakage Weight(1PC)
170*150*130mm0.61Kg
WHOLE BOX PACKAGEPackage dimensions(36PCS)Pakage Weight(36 PCS)
535*525*475mm21.96kG
PRODUCT HS CODE8543709990
