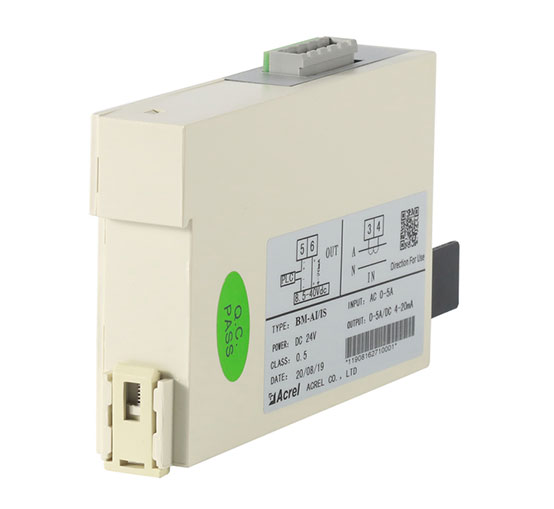

Acrel BM-AI / IS AC Current Intput Analog Signal Isolator

Acrel BM series analog signal transmitters can perform high-speed and accurate measurement of electrical parameters such as current and voltage or non-electrical parameters such as temperature and resistance, and convert them into standard analog signals for output after isolation. It can be directly connected with pointer meter and digital display meter, and can also be connected with automatic control instruments (such as PLC), various A/D converters, and computer systems.

BM-AI/IS AC Current Input Analog Signal Isolator can measure AC 0-5A, isolate and convert it into 4-20mA analog signal output, connect to PLC, A/D converter and computer system, etc. Power supply DC24V.It is small and easy to install.

  • Input:AC 0~1A,0~5A

  • Output:DC 4-20mA

  • Power supply:DC 24V

  • Accuracy:Class 0.5

Parameters of BM-AI/IS AC Current Input Analog Signal Isolator


Technical parameters

BM-AI/IS

Input

AC 0-1A,0-5A

Output

Range

DC 4-20mA


Load

≤500Ω

Power supply

Range

DC 24V(18V~32V)

Accuracy/linearity

Max. 0.5% of full span

Temperature effect

≤200ppm/℃

Response time

≤400ms

Insulation resistance

≥100MΩ

Isolation voltage

2kV between input and output,50HZ

Environment

Operating/storage temperature

-10℃ ~+55℃/-25 ~+70℃


Humidity

≤93%RH.No condensation, no corrosive gas place


Altitude

≤2500m

Installation

T35 din rail


Video of Analog Voltage Isolator


Wiring of BM-AI/IS AC Current Input Analog Signal Isolator


BM-AI/IS AC Current Input Analog Signal Isolator interface 5/6 is signal input,interface 3/4 is analog output DC 4~20mA,which can connect to PLC system etc.And it is powered by the PLC.


Wiring of BM-AI/IS AC Current Input Analog Signal Isolator

Strature of BM-AI/IS AC Current Input Analog Signal Isolator


Strature of BM-AI/IS AC Current Input Analog Signal Isolator

Application of BM-AI/IS AC Current Input Analog Signal Isolator


  • Process control of power plants and metallurgical plants.

  • Suitable for automation companies such as water works, sewage treatment plants.

  • Oil and gas production company.

  • Production in the chemical industry.
