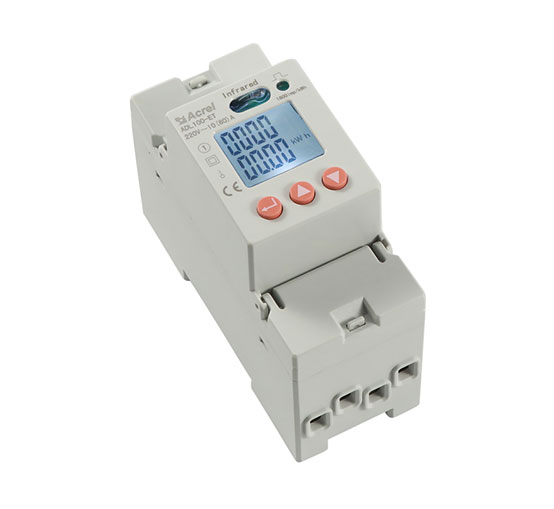

Acrel ADL100-ET Single Phase Din Rail Energy Meter with CT

Acrel ADL100-ET single phase energy meter is mainly used to measure single phase active energy of low-voltage network, and can measure voltage, current, power and other electric energy, with infrared communication function, and optional RS485 communication function, convenient for users to use electricity monitoring, collection and management.

It can be flexibly installed in the distribution box to realize the measurement, statistics and analysis of sub-item electric energy of different regions and different loads

  • Measurement of kWh

  • Measurement of electrical parameters

  • Small volume easy installation

  • LCD programmable

Parameters of ADL100-ET Single Phase Din Rail Energy Meter With CT


Technical parameter descriptions
projectperformance parameter
Specification1 phase
VoltageRated voltageAC 220V
Rated frequency50Hz
Consumption<10VA
CurrentBasic current10A,20A(External transformer)
Maximum current60A,100A(External transformer)
Starting current4‰Ib
Consumption<4VA
Measurement performanceAccurary of measuringkWh Class 1.0
Range of measuring0-99999999kwh
Clock accuracyError≤0.5s/d
Active pulseWidth80±20ms
Constant1600imp/kWh
CommunicationInterfaceRS485(A+、B-)
Connection modeShielded twisted pair conductors
ProtocolModbus-RTU
Temperature rangeWork-25℃-55℃
Storage-40℃-70℃
Mechanical performanceLength × Width × Height88mm×36mm×70mm
Strong current terminal Torque<2.0Nm
Humidity≤95%(No condensation)
Altitude<2000m


Diagram of ADL100-ET Single Phase Din Rail Energy Meter With CT


ADL100-ET single phase energy meter is divided into direct current access and secondary current access. When used the direct connecting method, please pay attention to the direction of input and output while wiring and screw tightly, prevent the meter from the abnormal work. The overall size of the meter is L*W*H: 88*36*70mm, the front panel has the corresponding silkscreen, including Enter-wire, Out-wire, auxiliary function port number, LOGO, LCD display, buttons, etc.


Diagram of ADL100-ET Single Phase Din Rail Energy Meter With CT

Benefits of ADL100-ET Single Phase Din Rail Energy Meter With CT


  • High precision, CE and MID certification

  • Small size, light weight, easy to install

  • Diverse functions,full electric parameter measurement

  • Can realize wireless communication with gateway module

Use of ADL100-ET Single Phase Din Rail Energy Meter With CT


  • Installed in the distribution room and distribution cabinet

  • Used for measuring electrical energy in a domestic meter box

  • Measurement of electrical energy in school buildings

  • Electricity measurement of shopping malls, supermarkets, and other buildings
