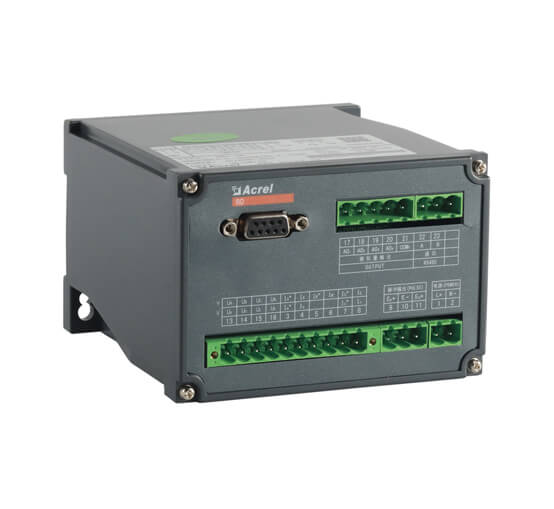

Acrel BD-4E Three Phase Four Wire Power Transducer

Name: BD-4E Three Phase Four Wire Power Transducer
Brand: Jiangsu Acrel Electrical Manufacturing Co., LTD.

Acrel BD Series power transducer are devices that isolate and transmit non-electrical parameters such as current, voltage frequency, power, power factor, or temperature and resistance into linear DC analog or digital signals. It can be directly connected with pointer meters, digital meters, automatic control devices (such as PLC), various A/D converters, computer systems, etc.

BD-4E Three Phase Four Wire Power Transducer Transmit kWh value of electric power system into high linear pulse. It has RS485 communication interface, adopts Modbus protocol, and exports three-phase current, voltage, active power, reactive power, frequency, power factor, active energy reactive energy and so on. 1~4 channel analog optional, two channel electric energy pluse output.



Input:AC 1A/5A,AC 100V/22V/380V


Output:DC 0-20mA/4-20mA/0-5V/0-10V


Power supply:AC 85~265V,DC 100V~350V,DC 24V


Optional function:2-4 channels analog output

Products

Parameters of BD-4E Three Phase Four Wire Power Transducer

Type		BD-3E,BD4E,BD-4EA
Accuracy		0.5 class,0.2 class
Input	Signal	AC 1A,5A AC 100v,220v,380v
	Overload	Current:continuous 1.2 times, instant current 10 times per second Voltage:continuous 1.2 imes, instant Voltage 10 times per second
	Frequency	45Hz~65Hz
Output	Signal	DC 4~20mA,0~20mA,0~5V,0~10V
	Load	Current output<600Ω,Voltage output1000Ω
	Optional function	2-4 channels analog output
Power Supply		AC 85~265V,DC 100-350V,DC 24V/48V
Temperature drift coefficient		0.2class≤100ppm℃,0.5class≤200ppm℃
Response time		<400ms
Insulation resistance		≥100MΩ
Power frequency withstand voltage		Auxiliary power supply/Input / Output 2kV/1min,50Hz
Environment	Temperature	Work;-10℃~55℃ Store:-25℃~70℃
	Humidity	≤93%RH,places without condensation and corrosive gas
	Altitude	≤2500m
Installation mode		TS35mm din rail or screw fixing

Video of 4 Wire Pressure Transducer

Wiring of BD-4E Three Phase Four Wire Power Transducer

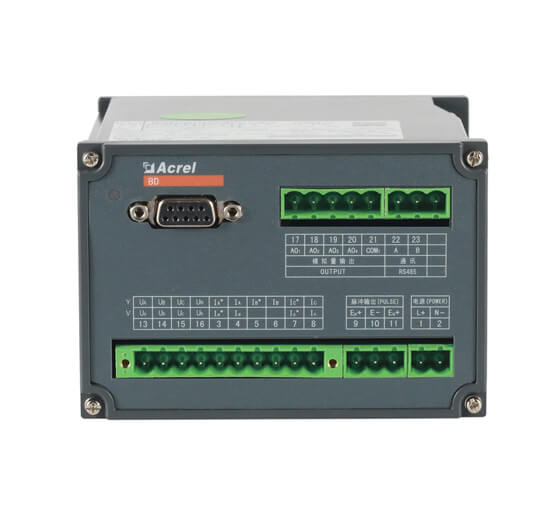

BD-4E Three Phase Four Wire Power Transducer interface 3/4,5/6,7/8 is A/B/C phase current input,interface 13/14/15/16 is A/B/C/N phase voltage input,interface 1/2 power supply L/N(AC 85~265V,DC 100V~350V,DC 24V),interface 9/10/11 is the Ep/Eq pluse output,interface 17/18/19/20/21 is the four channels analog output DC 4~20mA,0~20mA,0~5V,0~10V which can connect to PLC system etc.interface 22/23 in the RS485 communication.

Wiring of BD-4E Three Phase Four Wire Power Transducer

Application of BD-4E Three Phase Four Wire Power Transducer

Industrial automation
Photovoltaic and wind power industries
Metallurgy, electric power, oil field
Railway locomotive shipping industry

Package of BD-4E Three Phase Four Wire Power Transducer

MINIMUM PACKAGE
MINIMUM PACKAGE	Package dimensions(1 PC) 1715.512.5cm	Package Weight(1 PC) 0.55Kg

WHOLE BOX PACKAGE	Package dimensions(4 PCS) 45.52619.5cm	Package Weight(4 PCS) 3.2kG

PRODUCT HS CODE	9030339000
