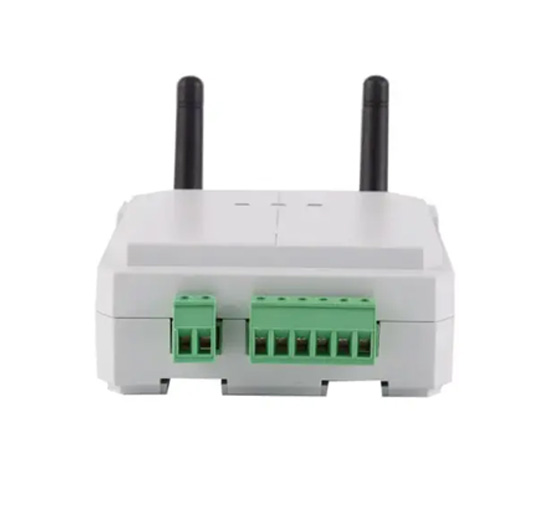

Acrel ATC600 Wireless Temperature Transmit

Name: ATC600 Wireless Temperature Transmit
Brand: Jiangsu Acrel Electrical Manufacturing Co., LTD.

ATC600 wireless transceiver is used with ARTM wireless temperature measurement system. It can be used in 3~35kV indoor switch cabinets, including central cabinets, handcart cabinets, fixed cabinets, ring network cabinets and other switch cabinets, and can also be used in 0.4kV low-voltage cabinets , including fixed cabinets, drawer cabinets, etc., using wireless data transmission technology, the monitoring data can be sent in real time, the temperature can be displayed on the spot, or remote intelligent monitoring can be realized.

Products

Acrel ATC600 Wireless Temperature Transmit Parameters

Items		Features
Transceiver ATC600	Power	AC/DC100~265V ≤6VA ≤8VA
	Power consumption	≤2W
	Points	≤240 points
	Resolution	0.1℃
	Range of temperature	-50℃~+125℃
	Accuracy	±1℃
	Wireless frequency	470M
	Distance	Transceiver sensor 150 m( open), repeaters distance 1 km( open)
	Communication port	RS485
	Protocol	MODBUS-RTU
	Baud(bps)	2400、4800、9600、19200
	Relay output	2 passive exits ,5 A/AC250V,5A/DC30V capacity
	Working environment	Temperature：-20 ℃～+55 ℃; Humidity≤95%

Acrel ATC600 Wireless Temperature Transmit Video

Acrel ATC600 Wireless Temperature Transmit Diagram

Diagram of ATC600 Wireless Temperature Transmit

Acrel ATC600 Wireless Temperature Transmit Benefits

Wireless transmit,470MHz
Wireless distance, Receiver sensor 150m (in open area), Relay distance 1Km (in open area)
Measuring 240 points
Power supply, AC/DC100~256V
Relay output, 2 passive output, capacity 5A/AC250V, 5A/DC30V
RS485(MODBUS-RTU)
