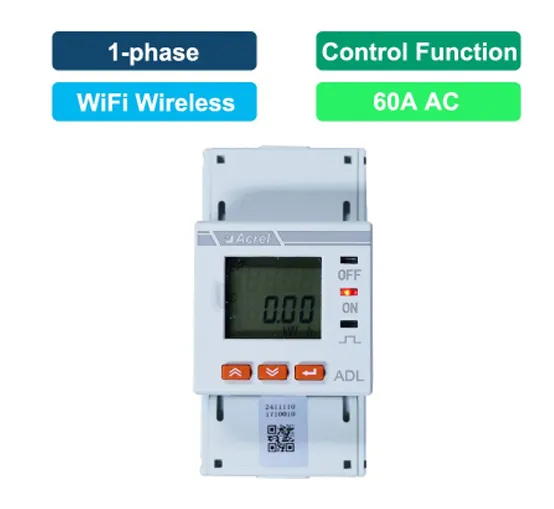

Acrel ADL200-NK Single-phase WiFi Billing Energy Meter

Acrel ADL200-NK single-phase pre-paid watt-hour meter is used to measure single-phase AC active power with rated frequency of 50Hz. It has functions such as pre-paid control, load control, time control and RS485 communication. It is an ideal meter for reforming the traditional power consumption system and improving the power consumption management level.

Products

Parameters of Acrel ADL200-NK single-phase WiFi Wireless Energy Meter


Features

Function description

Energy Metering

Active power (positive and negative)

Reactive power (positive and negative)

Electricitymeasurement

U 、I

P 、Q 、S 、PF、F

LCD Display

8-digit segment LCD display, backlight display

ButtonProgramming

3 Key programmable communication and other parameters

Pulse output

Active pulse output

Multi-tariff

Support 4 time zones, 4 time slots, 14 daily time slots, 4 rates

Historical frozen data, power purchase records

Date, time, day of the week

Communication

One RS485 interface, Modbus


Control

Prepaid control

Time control

Load control

Coercive control

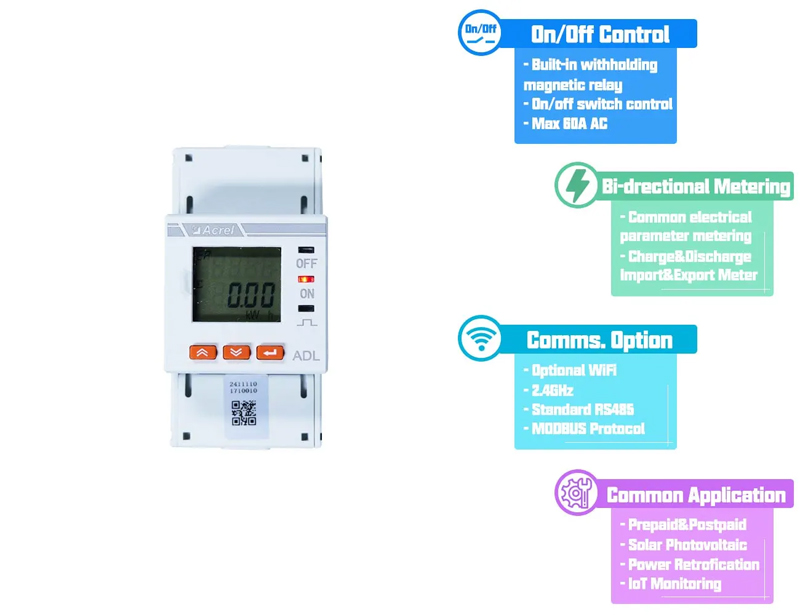

Overview of Acrel ADL200-NK single-phase WiFi Wireless Energy Meter



Overview of Acrel ADL200-NK single-phase WiFi Wireless Energy Meter

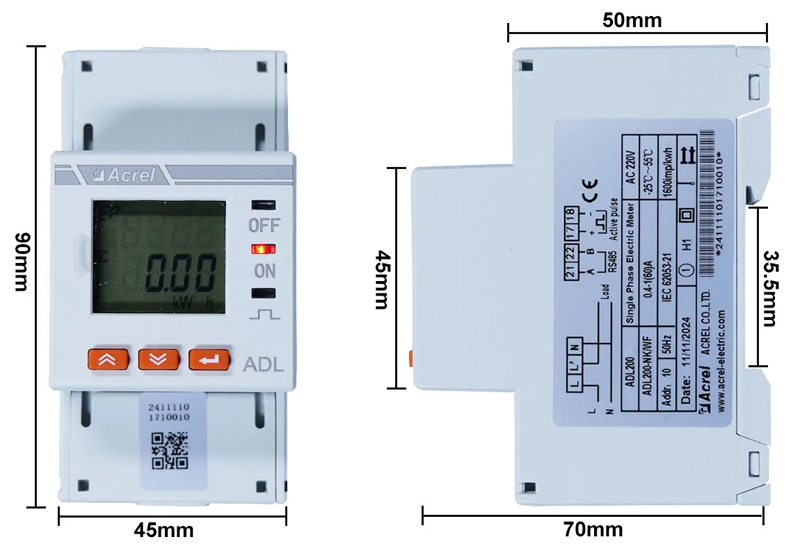

Dimension(Unit: mm) and Display of Acrel ADL200-NK single-phase WiFi Wireless Energy Meter



Dimension and Display of Acrel ADL200-NK single-phase WiFi Wireless Energy Meter

Main Features of Acrel ADL200-NK single-phase WiFi Wireless Energy Meter


Wireless Communication


● Support optional 2.4GHz WiFi comms.

● Standard 1-channel RS485 [MODBUS-RTU]

Main Features of Acrel ADL200-NK single-phase WiFi Wireless Energy Meter

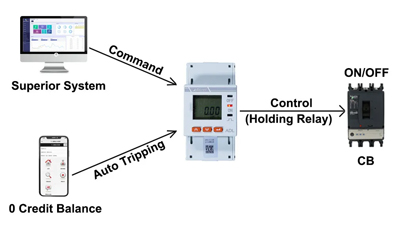

Built-in control function


● With built-in withholding magnetic relay

● Control the circuit not more than 60A AC

● Remote control via platform available

Main Features of Acrel ADL200-NK single-phase WiFi Wireless Energy Meter

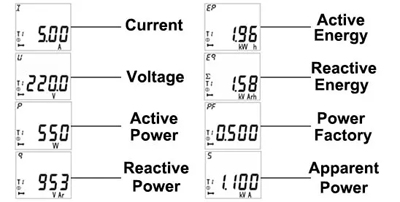

Diverse Electricity Parameters Measurement


● U (Voltage)

● I (Current)

● P (Power)

● Q (Reactive power)

● S (Apparent power)

● PF (Power factor)

● kWh (Kilowatt-hours)

● kVarh (Kilovar-hours)

Main Features of Acrel ADL200-NK single-phase WiFi Wireless Energy Meter


Wiring of Acrel ADL200-NK single-phase WiFi Wireless Energy Meter

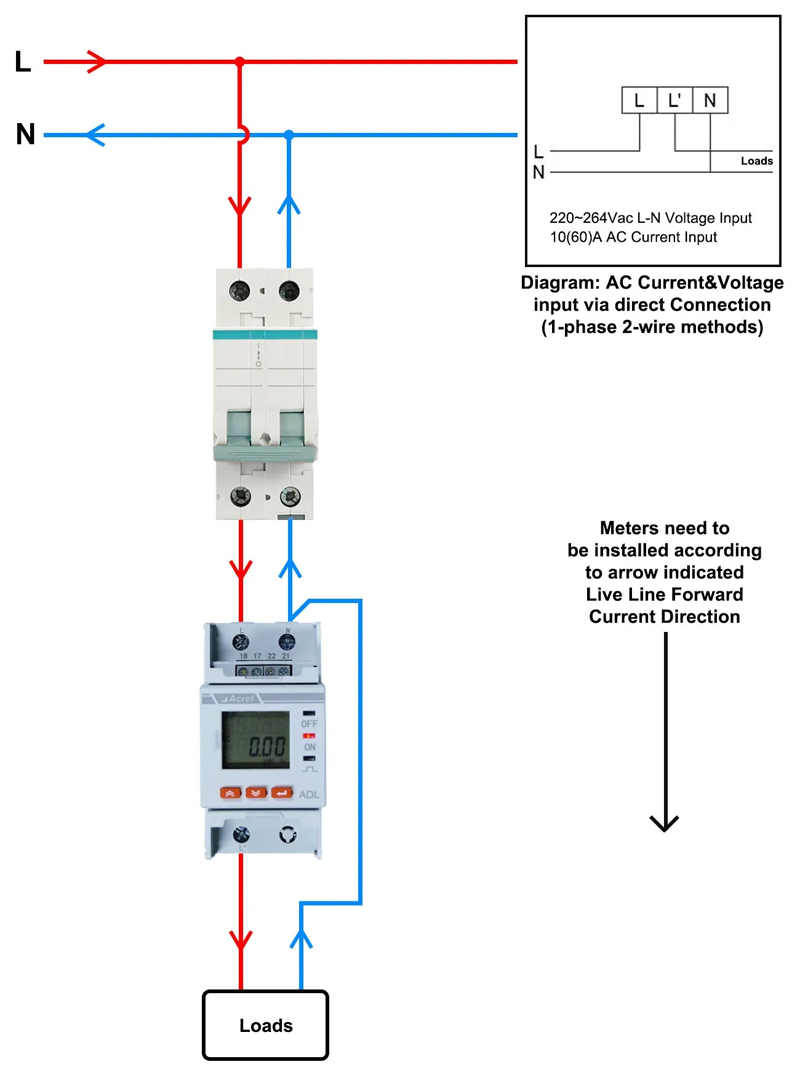

Power Wiring of ADL200-NK

Power Wiring of ADL200-NK

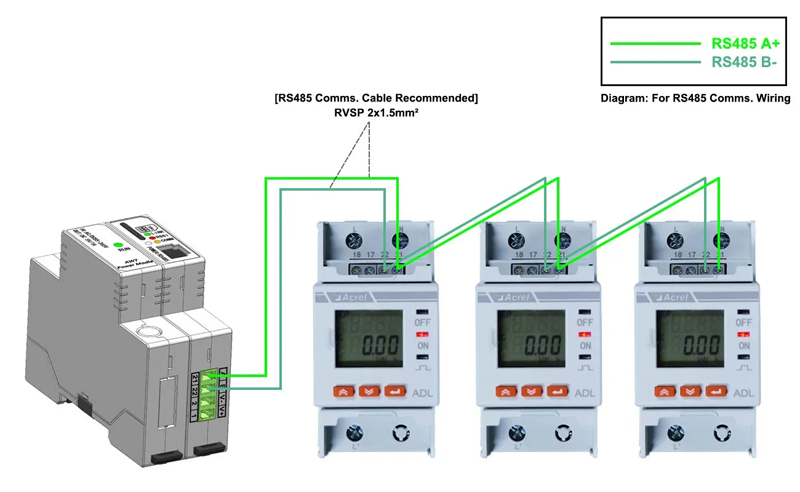

RS485 Communication Wiring of ADL200-NK

RS485 Communication Wiring of ADL200-NK

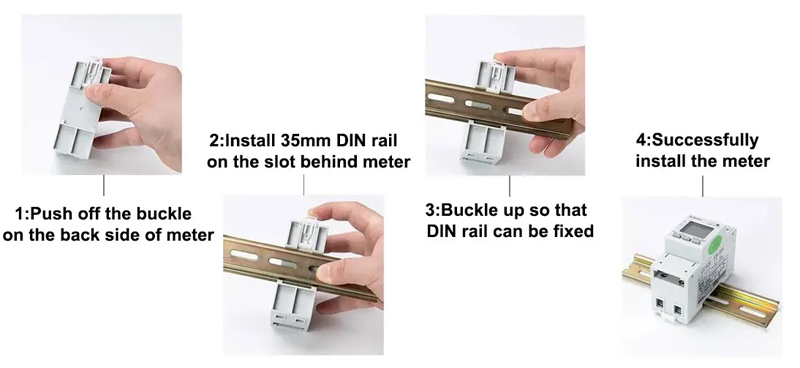

Installation of Acrel ADL200-NK single-phase WiFi Wireless Energy Meter


Installation of Acrel ADL200-NK single-phase WiFi Wireless Energy Meter

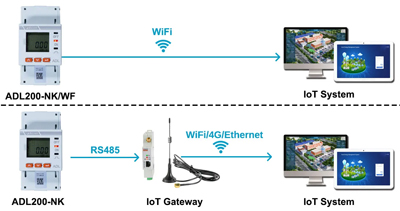

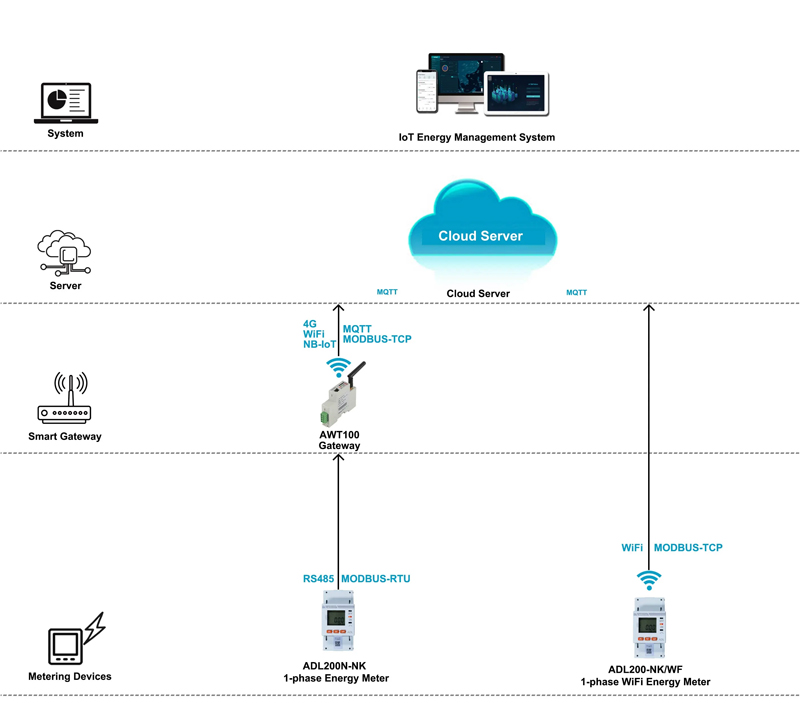

Application in IoT System of Acrel ADL200-NK single-phase WiFi Wireless Energy Meter


Application in IoT System of Acrel ADL200-NK single-phase WiFi Wireless Energy Meter
