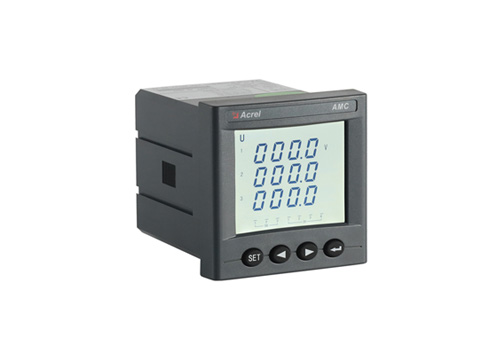

Acrel AMC series programmable power meter is an intelligent instrument designed for the power monitoring needs of power systems, industrial and mining enterprises, public facilities, and smart buildings. It integrates the measurement of power parameters, as well as power monitoring and assessment management. It adopts high-brightness LED/LCD display interface, and realizes parameter setting and control through buttons, which is very suitable for real-time power monitoring system.
|Input||Nominal value||AC voltage: Single phase AC 100V、400V;Three phase AC 100V、400V、660V(only 72、96,Threephase soecific line voltage)AC current: AC 1A、5A;DC voltage: 1000V、300V; Direct current:75mV、10V、0-20mA、4-20mA、5A; Consult special specification in advance|
|Overload||Voltage: 1.2 times continuous,2 times continuous I second; current: 1.2times continuous,10 times continuous I second|
|Powerconsumption||Power consumption of each voltage, current Input circuit is less than 0.5VA|
|Accuracy class||Class 0.5|
|Function||Display||LED or LCD display|
|Communication||RS485, Modbus-RTU compatible protocol(1 start bit,8 data bit, I stop bit, no parity)Baud Rate 2400/4800/9600/19200 bps|
It integrates the measurement of all power parameters (such as single-phase or three-phase current, voltage, active power, reactive power, apparent power, frequency, power factor, etc.), multi-rate energy metering, four-quadrant energy metering, harmonics Analysis and power monitoring and assessment management. A variety of peripheral interface functions: with RS485/MODBUS-RTU protocol; with switch input and relay output, the functions of "remote signaling" and "remote control" of the circuit breaker switch can be realized. The LCD display interface is used, and the parameters are realized through the panel buttons. Setup and control, ideal for real-time power monitoring systems
AMC series programmable power meter is designed for the electric power system, industrial and mining enterprises, public facilities, intelligent buildings and power monitoring requirements.
Panel mounted power meter and din rail energy meter.
Energy meter(wh,kwh):measure the amount of electricity emitted and consumed by the device within a certain period of time.
72*72mm and 96*96mm.
