Acrel AGF-M Solar DC String Monitoring Device

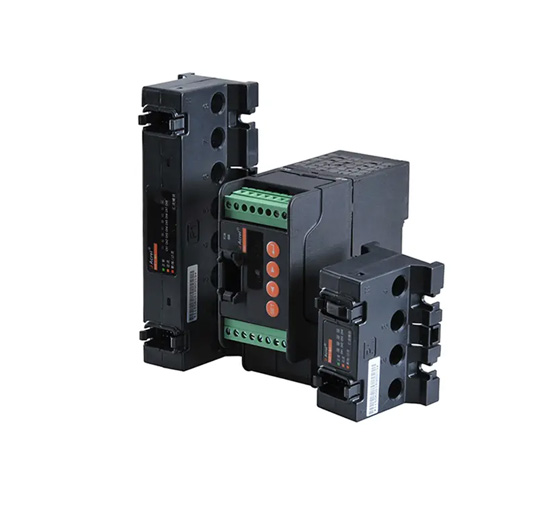

Name: AGF-M Solar DC String Monitoring Device
Brand: Jiangsu Acrel Electrical Manufacturing Co., LTD.

AGF-T Perforation type PV confluence acquisition device is specially designed for smart PV combiner box. It is used for monitoring the running state of solar panels in solar cell arrays, measuring the currents of solar cell, detecting the state of surge protection devices and DC breaker. The device is equipped with RS485(Modbus) communication port for transmitting all the datas to master device.

Acrel AGF-M Solar DC String Monitoring Device measure DC Current up to 24 Circuits (with Hall Sensors); Voltage of Busbar,Paired with PV Combiner Box for DC Multi-circuits Monitoring



RS485
(MODBUS-RTU)


Inner Temperature of PV Combiner Box


3-channel Digital Input


LCD Display


Power Supply: 1500V DC


Certificate: CE;LVD;EMC

Products

Video of AGF-M Solar DC String Monitoring Device

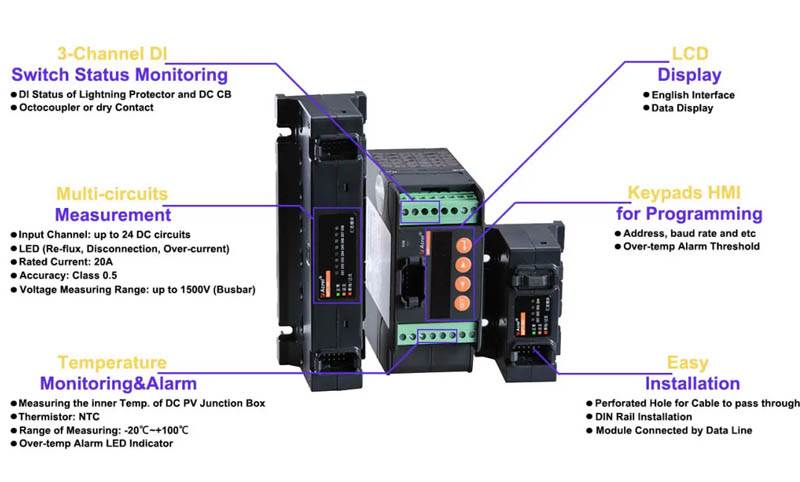

Features of AGF-M Solar DC String Monitoring Device


Features
Measure up to 24 DC Circuits ● Input Channel: up to 24 Circuits ● LED Indicator for Re-flux, Disconnection, Over-current ● Rated Current: 20A ● Accuracy: 0.5 Class ● Voltage Measuring Range: up to 1500V (Busbar)
3-Channel DI Switch Status Monitoring ● DI Status of Lightning Protector and DC CB ● Octocoupler or dry Contact
Temperature Measuring & Over-temperature Alarm Function ● Measuring the inner Temperature of DC PV Junction Box ● Thermistor: NTC ● Range of Measuring: -20℃~+100℃
Keypads HMI for Programming ● Communication(address, baud rate and etc.) ● Over-temp Alarm Threshold
LCD Display ● English Interface ● Data Display
Easy Installation ● Perforated Hole for Cable to pass through ● DIN Rail Installation ● Module Connected by Data Lin
