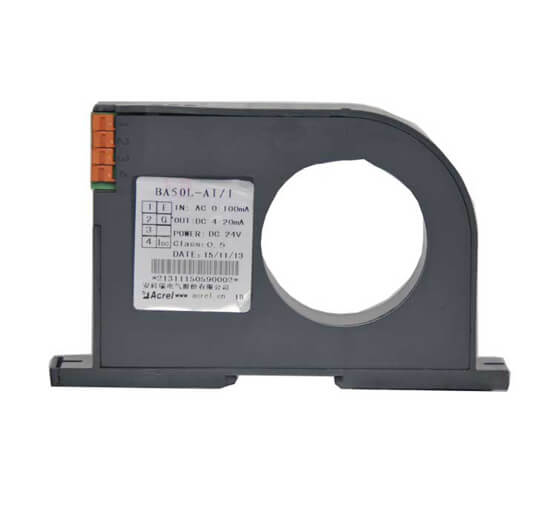

Acrel BA50L-AI / I 0-1A Leakage Current Sensor

Name: BA50L-AI / I 0-1A Leakage Current Sensor
Brand: Jiangsu Acrel Electrical Manufacturing Co., LTD.

Acrel BA series AC Current Transducer apply the principle of electromagnetic induction to measure the AC current in the power grid in real time, and use constant current and linear compensation technology to isolate and convert it into a standard DC signal output.

BA50L-AI/I 0-1A Leakage current sensor is an AC residual current transformer, which mainly detects the leakage current of electrical system, and can master the state of electrical lines and equipment at any time to prevent leakage caused by fire and other accidents.



Input:AC 0-1A leakage current


Output:DC 0-20mA/4-20mA/0-5V


Current transformer:Active leakage ct


Aperature:φ50mm

Products

Parameters of BA50L-AI / I 0-1A Leakage Current Sensor

Type	BA50L-A/I(V)
Auxiliary Power	DC 12V/24V
Consumption	≤1W
Through-hole size	Φ50mm
Input Current	AC0~(0.1~1)A(imitation of leakage cuments)
Output Nominal value	DC4-20mA ,or 0-20mA,0-5V,0-10V etc
Output Load resistance	Current output≤500Ω,Voltage output≥1kΩ
Accuracy Class	0.50%
Response time	≤350ms
Temperature	Operation:-10 to +55℃ Storage:-25 to+70℃
Temperature coefficient	≤200ppm/℃
Installation	(Rail)DIN35, fix on cubicle with screws
Standards	GB/T13850 CE

Video of Leakage Current Sensor

Diagram of BA50L-AI / I 0-1A Leakage Current Sensor

BA50L-AI/I 0-1A Leakage current sensor is composed of Zeroing,Satisfactory adjusting,Power indicator,Power positive pole,common earthing,Analog output,Bayonet lock,inlet through hole and 35mm Guide-rail groove.

Diagram of BA50L-AI / I 0-1A Leakage Current Sensor

Application of BA50L-AI / I 0-1A Leakage Current Sensor

Industrial automation Leakage monitoring
Insulation monitoring of electrical lines or electrical equipment
Metallurgy, Electric Power, Oil Field
Railway locomotives, Shipping Industry

Application of BA to Water Pump In Sewage Treatment Industry

In the case of unmanned inspection of water pumps and circulating pumps in the sewage treatment industry, BA series AC current transmitters can be used for monitoring, the first time to understand the power status of the water pumps, and the transmission of BA sensors can be collected through PLC or DSC system. Data to correctly judge the normal working condition of the pump.
