What is hospital isolated power system?

It is an isolated power supply system that conducts insulation monitoring and fault determination of the power distribution system, to further provide safe, reliable and continuous power distribution.

What are functions of medical isolated power panels?

Real-time monitoring of the insulation, load and isolation transformer temperature of the IT system, with functions such as system insulation fault circuit location and centralized monitoring of multiple systems.

What's the consists of medical isolated power supply system?

The medical isolated power supply system consists of a medical isolation transformer, medical intelligent insulation monitoring instrument, current transformer, insulation fault locator, test signal generator, power module and centralized alarm and display instrument.

Medical Isolated Power Panels In Operating Rooms, Hospital Isolated Power Systems

Q: What are the applications of hospital isolated power systems?

You can find medical isolation panels in operating rooms, ICU/CCU intensive care units, premature infant care units, delivery rooms, hemodialysis centres, emergency rooms and other important medical places.



Acrel medical isolated power supply systems are mainly used in operating rooms, ICU/CCU intensive care units, premature infant care units, delivery rooms, hemodialysis centres, and emergency rooms. The hospital isolated power systems provide safe, reliable and continuous power distribution for important equipment in these places. They can realize the conditions of insulation, load and isolation transformer temperature of IT system. Real-time monitoring with functions such as system insulation fault circuit location and centralized monitoring of multiple systems.

Products

Medical Isolated Power Supply System For Sale

Hospital isolated power systems provide safety, continuous and reliable power supply, real-time detection of the insulation state to the ground to ensure the life safety of patients. Insulation fault location, convenient maintenance.

Hospital Isolated Power Systems Data Sheet

Technical Parameters of AITR Series of Medical Isolation Transformer
Type	AITR10000	AITR8000	AITR6300	AITR5000	AITR3150
Insulation class	H	H	H	H	H
Protection class	IP00	IP00	IP00	IP00	IP00
Power/voltage/ current
Rated power	10000VA	8000VA	6300VA	5000VA	3150VA
Rated frequency	50/60Hz	50/60Hz	50/60Hz	50/60Hz	50/60Hz
Rated input voltage	AC230V	AC230V	AC230V	AC230V	AC230V
Rated input current	45.3A	36A	28.5A	22.5	14.2A
Rated output voltage	AC230V/115V	AC230V/115V	AC230V/115V	AC230V/115V	AC230V/115V
Rated output current	43.5A	34.7A	27.4A	21.7	13.7A
Inrush current	<12In	<12In	<12In	<12In	<12In
Leakage current	<200μA	<200μA	<200μA	<200μA	<200μA
No load input current	1.359A	1.08A	0.855A	0.675A	0.426A
No load output voltage	235V±3%	235V±3%	235V±3%	235V±3%	235V±3%
Short circuit voltage	<6.9V	<6.9V	<6.9V	<6.9V	<7.5V
General parameters
Fuse wire	80A	63A	50A	35A	25A
Primary winding resistance	<55mΩ	<64mΩ	<80mΩ	<131 mΩ	<245mΩ
Secondary winding resistance	<45mΩ	<64mΩ	<80mΩ	<116 mΩ	<228mΩ
Iron loss	<150W	<105W	<107W	<77W	<55W
Copper loss	<230W	<200W	<170W	<125W	<120W
Efficiency	>96%	>96%	>96%	>96%	>95%
Maximum ambient temperature	<40℃	<40℃	<40℃	<40℃	<40℃
No-load temperature rise	<36℃	<33℃	<31℃	<26℃	<22℃
Full load temperature rise	<65℃	<76℃	<67℃	<62℃	<55℃
Noise grade	<40dB	<40dB	<40dB	<40dB	<40dB

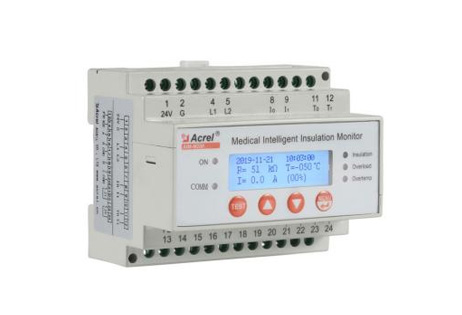

Hospital Isolated Power Systems Purpose

Medical isolated power panels provide safe, reliable and continuous power distribution for the important equipment at these locations:

Used for the transformation of TN system into IT system (ungrounded system)
Functions of real-time monitoring and fault alarming of the ground insulation resistance, transformer load current and transformer winding temperature of the monitored IT system
When the monitored IT system has an insulation fault, the hospital isolation panel can initiate and generate the fault location signal to the system, and realize fault locating function with the help of the fault locator
Acrel hospital isolated power systems can remotely monitor the real-time operating conditions of up to 16 pieces of systems, and the main interface intuitively displays whether the access system communication is intact

Medica/Hospital Isolated Power Systems FAQs



What is hospital isolated power system?


It is an isolated power supply system that conducts insulation monitoring and fault determination of the power distribution system, to further provide safe, reliable and continuous power distribution.


What are functions of medical isolated power panels?


Real-time monitoring of the insulation, load and isolation transformer temperature of the IT system, with functions such as system insulation fault circuit location and centralized monitoring of multiple systems.


What's the consists of medical isolated power supply system?


The medical isolated power supply system consists of a medical isolation transformer, medical intelligent insulation monitoring instrument, current transformer, insulation fault locator, test signal generator, power module and centralized alarm and display instrument.


What are the applications of hospital isolated power systems?


You can find medical isolation panels in operating rooms, ICU/CCU intensive care units, premature infant care units, delivery rooms, hemodialysis centres, emergency rooms and other important medical places.
