Acrel ADL100-EY Single Phase Prepaid Energy Meter

Name: ADL100-EY Single Phase Prepaid Energy Meter
Brand: Jiangsu Acrel Electrical Manufacturing Co., LTD.

Acrel ADL100-EY single phase prepaid energy meter supports rf recharge (or card recharge) and remote recharge, with prepayment control, time control and other control methods. Built-in 100A large capacity magnetic relay, which can realize the internal switching and closing of the instrument. Can also provide dry contact output control external circuit breaker trip function. It is widely used in pre-payment electricity management of commercial square, residential dormitory and school dormitory.

Remote selling electircity, infrared function,remote control, enegy consumption inquiry and analysis



AC 220V
10(60)A


RF card or remote recharge


LCD display
Historical records


kWh Class 1.0
DIN 35 mm

Products

Parameters of ADL100-EY Single Phase Prepaid Energy Meter

Type		ADL100-EY
Technical Parameters		Index
Reference frequency		50Hz
Consumption		<4VA(Each phase)
Current	Input current	10(60)A
	Starting current	0.004 Ib
	Consumption	<4VA
Measurement performance	Accuracy of measuring	Class 1
Clock accuracy		≤0.5s/d
Active pulse	Pulse width	80ms±20ms
Active pulse	Pulse constant	1600imp/kWh
Communication	Interface	RS485
	Connection mode	Shielded twisted pair conductors
	Protocol	MODBUS-RTU
Dimensions(Length × Width × Height)		72mm×88mm×70mm
Temperature range	Work temperature	-25℃~55℃
Temperature range	Storage Temperature	-40℃~70℃
Relative humidity		≤95%(No condensation)
Altitude		<2000m

Video of ADL100-EY Single Phase Prepaid Energy Meter

Features of ADL100-EY Single Phase Prepaid Energy Meter

Features

Local&Online Topping Up

Topping up by RFID Card (Local)

Topping up by Mobile APP (Online)

Topping up by Prepaid System (Online)

Low Balance Credit Alarm by sending SMS

Local&Online Topping Up

Auto&Remote Switch Control

Meter Supports Prepaid Mode & Postpaid Mode

Auto Tripping when Balance Credit is below Zero (Prepaid Mode)

Before Auto Tripping, Power Users can receive Low Balance Alarm by SMS

Remote Swtich Control by using Prepaid System (Prepaid&Postpaid Mode)

Prepaid&Postpaid Mode of Meters can be set using Prepaid System

Auto&Remote Switch Control

Multi-rate&Multi-tariff

4 Tariff Rates (Spike, Peak, Flat, Valley kWh Unit Price)

14 Time Intervals by Day

Set Unit Price of Electricity Consumption for different Time Period of 1 Day

Multi-rate&Multi-tariff

Diagram of ADL100-EY Single Phase Prepaid Energy Meter

ADL100-EY single phase prepaid energy meter separately calculates individual active energy at 50/60 Hz frequencies. With radio frequency card recharge function, with circuit breakers to achieve load cutting, RS485 communication and other functions, to meet the IEC62053-21, IEC62053-22 standards in the electronic watt-hour meter related technical requirements.

ADL100-EY Single Phase Prepaid Energy Meter

Dimension of ADL100-EY Single Phase Prepaid Energy Meter

ADL100-EY Single Phase Prepaid Energy Meter

Wiring of ADL100-EY Single Phase Prepaid Energy Meter

PIN/Terminal Overview of ADL100-EY

Power Wiring of ADL100-EY: 1-phase 2-wire via direct connect

RS485 Wired Communication of ADL100-EY with IoT Gateway


Installation of ADL100-EY Single Phase Prepaid Energy Meter

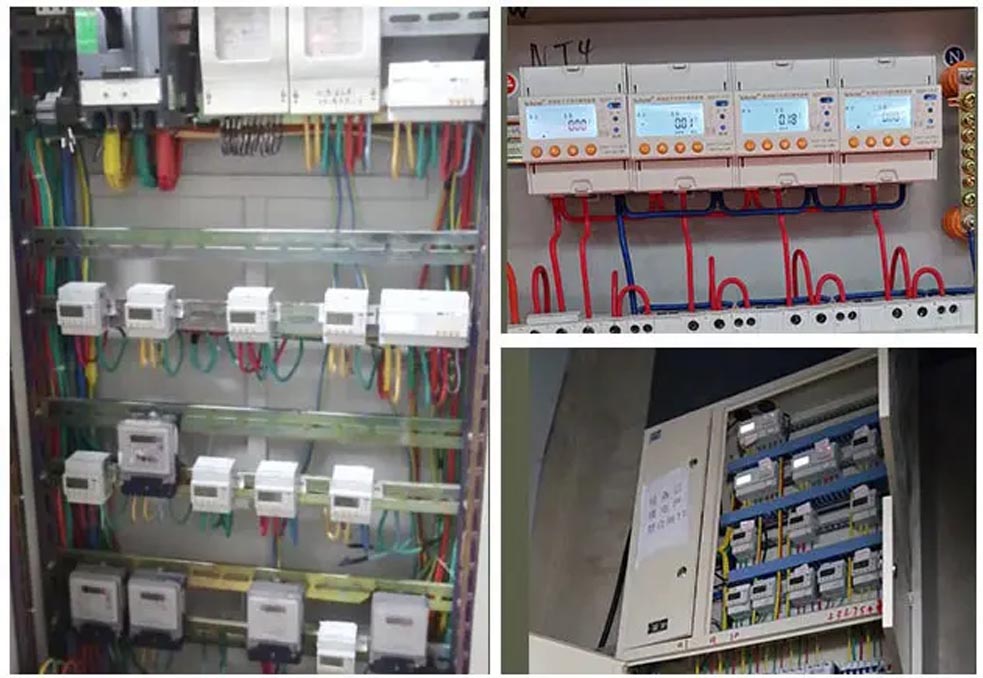

Work-site Installation of ADL100-EY Single Phase Prepaid Energy Meter

Benefits of ADL100-EY Single Phase Prepaid Energy Meter

High-definition LCD: LCD Backlight Display
Anti-flaming Shell: made of high flam retardant material ABS
Details Oriented: Insulating connection hole is resistant to corrosion
Remote selling electircity: support infrared, remote control, energy analysis

Use of ADL100-EY Single Phase Prepaid Energy Meter

The electric charge management of each household in the residential property
Management of electricity charges for tenants in shopping malls and supermarkets
Centralized management of electricity charges for all departments of the group
Localized electricity management in school dormitories

Package of ADL100-EY Single Phase Prepaid Energy Meter

Package
Packaging Overview (Minimum)
Packing Dimension and Weight (Minimum)	Minimum Package Contain 2 pcs Products Dimension: 170mm150mm130mm	Total N.W. (2 pcs) 0.517 KG
Packing Dimension and Weight (Large)	Large Package Contain 36 pcs Products Dimension: 540mm480mm280mm	Total N.W. (36 pcs) 10.712 KG
Average Lead Time	Manufacturing: 3~4 days	Shippment: 8~9 days (World Wide Shipment)
HS Code	8543709990
Country of Origin	China
