Acrel ABAT100 Series Battery Monitoring Devices

Name: ABAT100 Series Battery Monitoring Devices
Brand: Jiangsu Acrel Electrical Manufacturing Co., LTD.

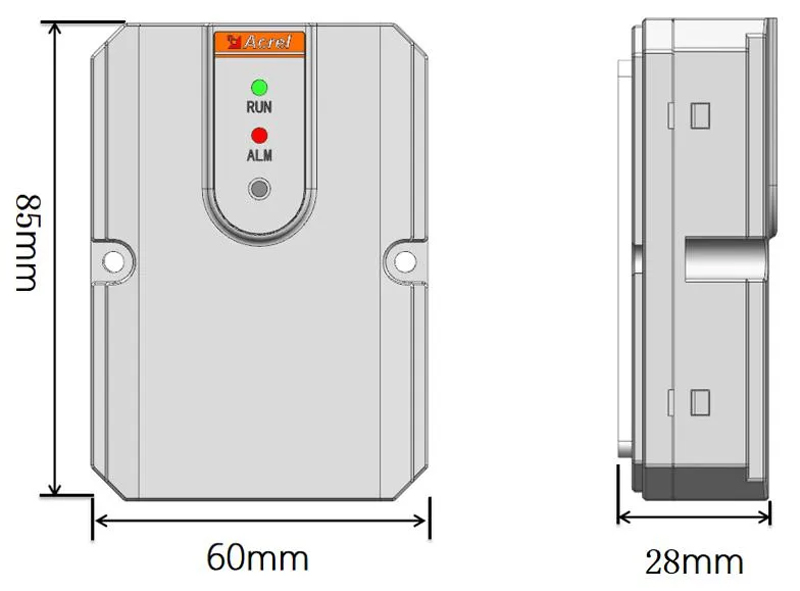

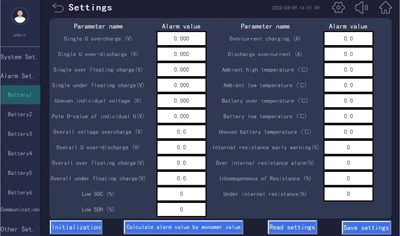

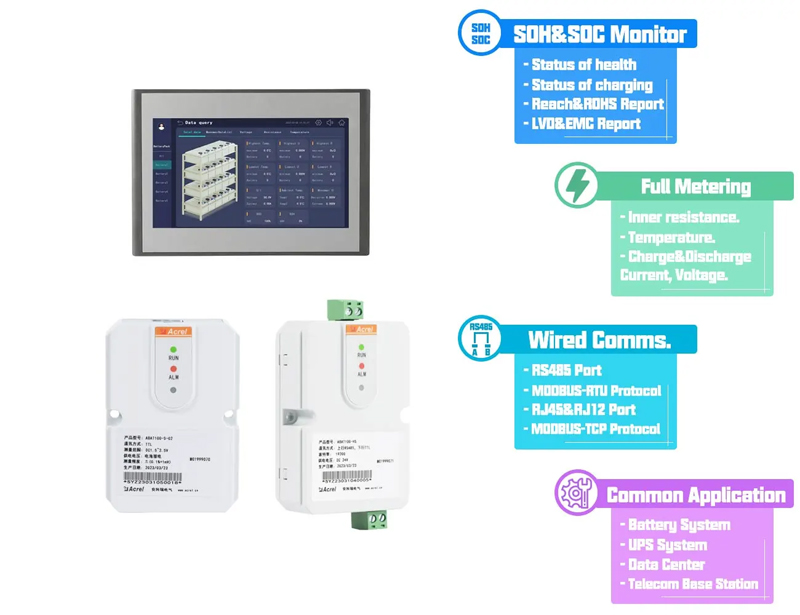

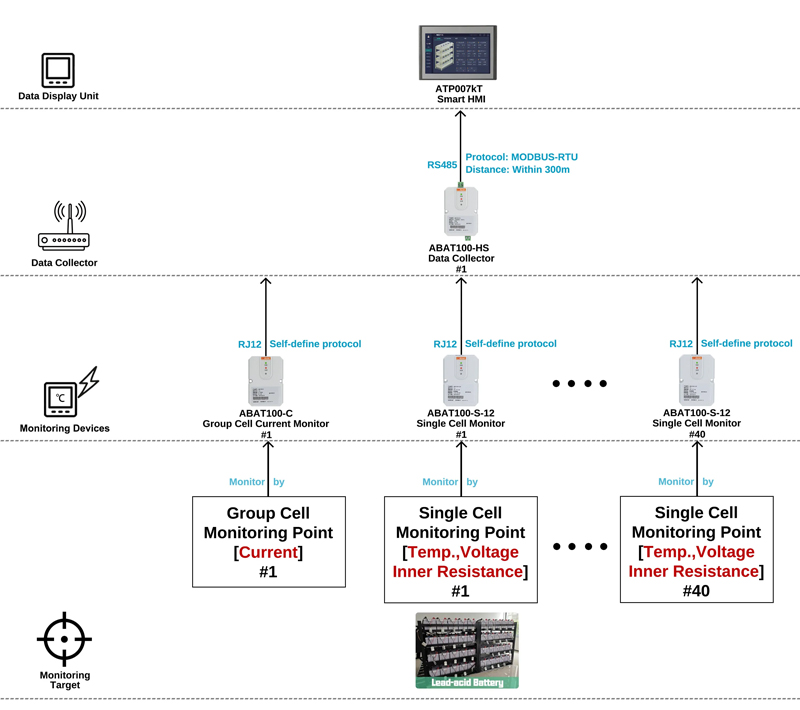

Acrel ABAT100 series battery online monitoring system can provide battery operation information suchas voltage, internal resistance and internal temperature, including SOC and SOH, and can provide early warning and battery equalization for failed batteries to guarantee battery pack backup time and extend battery pack life. The system has monitoring functions, and is easy to install, maintain and access. The system mainly consists of ABAT100-S single battery monitoring module, ABAT100-C group battery monitoring module, ABAT100-HS collector module and touch screen, etc. The alarm and real-time data can be queried and parameters can be set through the touch screen, and the monitoring platform can be selected to realize networked centralized management.

Products

Parameters of Acrel ABAT100 Series Battery Monitoring Devices

Module Name	Function description

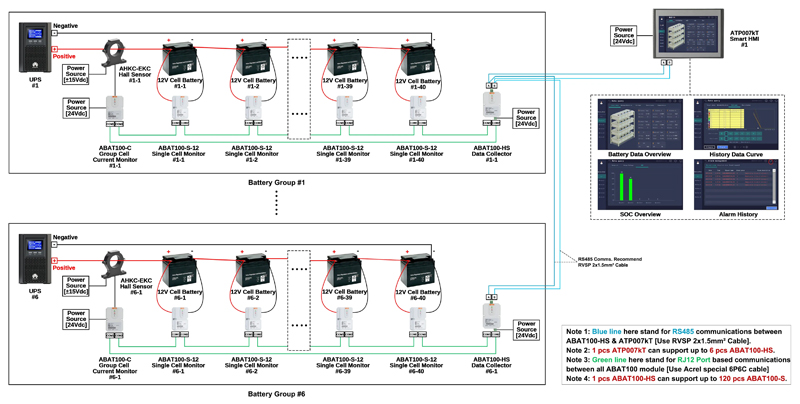

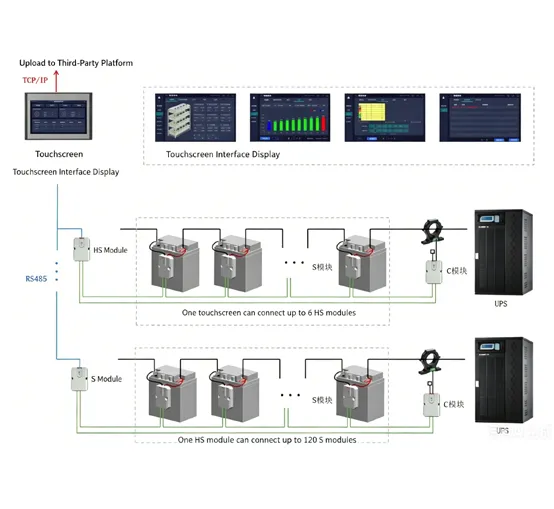

ABAT100-HS Data Collector	DC24V input, one to manage a group of batteries, up to 120 batteries in a group.
ABAT100-S-02 Single-cell Monitor	Monitor one 2V battery, monitor battery voltage, internal resistance and negative terminal temperature.
ABAT100-S-06 Single-cell Monitor	Monitor one 6V battery, monitor battery voltage, internal resistance and negative terminal temperature.
ABAT100-S-12 Single-cell Monitor	Monitor one 12V battery, monitoring battery voltage, internal resistance and negative terminal temperature.
ABAT100-C Group-cell Current Monitor	Monitor one charge/discharge current with an ambient temperature with a maximum current range of 1000A.
AHKC-EKC Hall Sensor	Paired with ABAT100-C for discharging & charging current monitoring

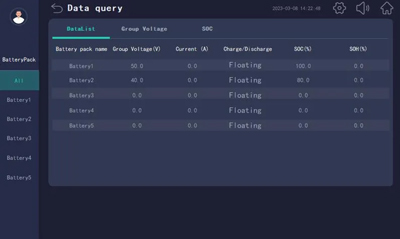

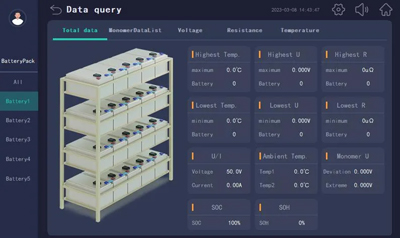

ATP007 Smart HMI	Smart HMI for displaying all battery management information, SOH, SOC and etc.
