Acrel AMC72L-AI3 Three Phase Programmable AC Ammeter

AMC72L-AI3 can measure the current signal in the three-phase power grid in real time, the instrument can have RS-485 communication interface, adopt Modbus-RTU protocol; can have analog output, relay alarm output, switch input/output. According to different requirements, parameters such as transformation ratio, alarm and communication can be set and controlled through the buttons on the instrument panel.

AMC series AC ammeter&voltmeter, adopting AC sampling technology, can directly measure current and voltage of three phase grid. It can be used for local display, and connecting industrial control device to form measuring control system.

  • AC current: AC 1A, 5A

  • LCD display for three phase current measurement

  • Four keys to communication and set parameters

Parameters of AMC72L-A3 Three Phase Programmable AC Ammeter


Technical ParameterValue
InputRated ValueAC voltage: Single phaseAC 100V,400V
Three phaseAC 100V, 400V, 660V(UL-L, Only 72/ 96)
AC current: AC1A,5A;
DC voltage: 1000V,300V,75mV,10V;
DC current: 0-20mA,4-20mA,5A;
OverloadVoltage: 1.2 times rated value(continuous); 2 times rated value /1 second
Current:1.2 times rated value(continuous); 10 times rated value /1 second
Frequency45Hz~65Hz
Power ConsumptionPower consumption of each voltage, current input circuit is less than 0.5VA
AccuracyClass 0.5
FunctionDisplayLED or LCD
CommunicationRS485, Modbus-RTU protocol;(1 start bit,8 data bit,1 stop bit, no parity)
Baud Rate 2400/4800/9600/19200 bps etc.
Alarm1 channel passive relay,contact capacity 3A/30VDC,3A/250VAC, Used for high,low,unbalance alarm etc.
AnalogDC4~20mA,( load<500Ω)
(note: Shielded wire is specially selected for the above signal input and output)
SwitchingInput: 4 channel or 2 channel dry contact Input, built in power supply
Output: 2 channel switching output,NO relay contact,capacity:3A/30VDC,3A/250VAC
Auxiliary SupplyAC/DC 85-265V
Power Consumption<5VA
Insulation resistance≥ 100MΩ
Power frequency withstand voltageBetween power supply set of terminals and signal input, output set of terminals 2kV/1min (RMS)
Between the shell and all set of terminals(except the set of terminals reference voltage less than 40V) AC 4kV
EnvironmentTemperatureOperation: -10℃~+55℃Storage: -25°C ~+70°C
Humidity≤95%RH, no condensation, without corrosive gas
Altitude≤ 2500m


Video of Programmable 3 Phase AC Power Supply

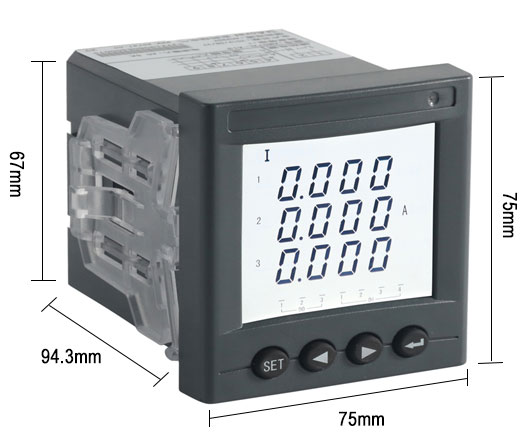

Diagram of AMC72L-A3 Three Phase Programmable AC Ammeter

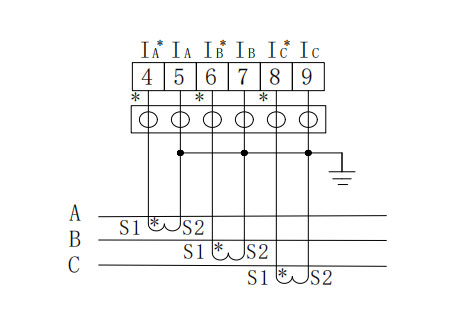

Diagram of AMC72L-A3 Three Phase Programmable AC Ammeter

Three Phase Ampere Meter

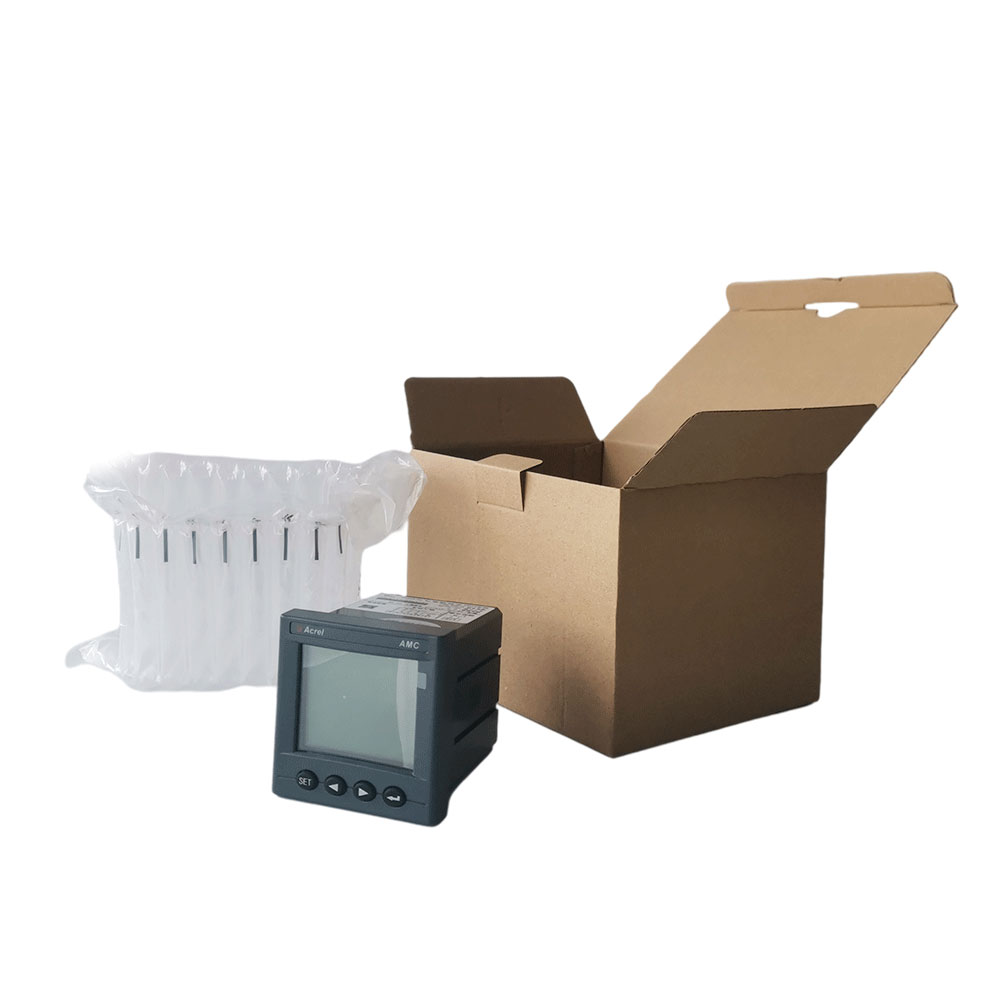

Package of AMC72L-A3 Three Phase Programmable AC Ammeter


MINIMUM PACKAGEProgrammable 3 Phase Ac Power SupplyThree Phase Ammeter With Rs485Digital Three Phase Current Meter3 Phase Amp Meter
MINIMUM PAKAGEPackage dimensions(1PC)
230*145*120mm
PakageWeight(2 PC)
0.53Kg
WHOLE BOX PAKAGEPackage dimensions(48PCS)
615*480*395mm
Pakage Weight(48PCS)
9.5kG
PRODUCT HS CODE9028301400
