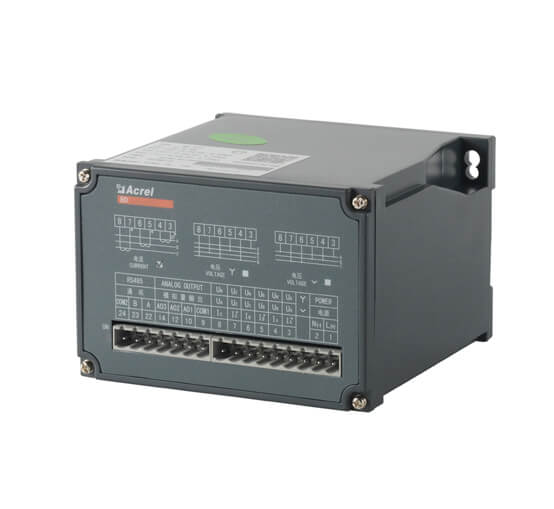

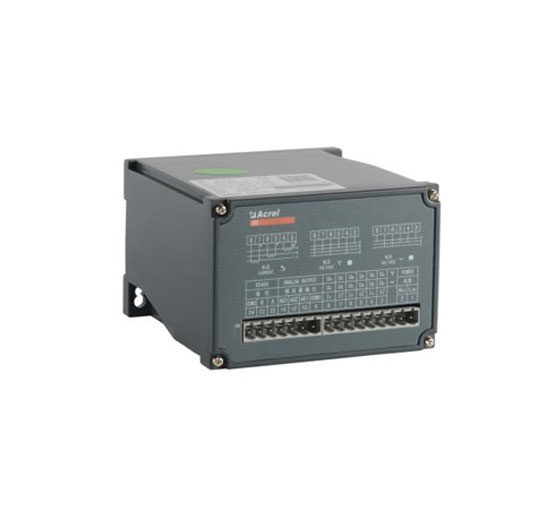

Acrel BD-3I3 Three Phase Current Transducer

Name: BD-3I3 Three Phase Current Transducer
Brand: Jiangsu Acrel Electrical Manufacturing Co., LTD.

Acrel BD series power transmitters are devices that isolate and transmit non-electrical parameters such as current, voltage frequency, power, power factor or temperature and resistance into linear DC analog or digital signals. It can be directly connected with pointer table, digital instrument, and automatic control devices (such as PLC), various A/D converters, computer systems.

BD-3I3 Three Phase Current Transducer can measure three-phase current and voltage signals, isolate and transmit three-way analog signals. Also can measure Voltage, Current, Power, Power factor, Frequency; 1.2 times of rated value overload; DC 0-5V/0-10V/0-20mA/4-20mA all can be choosed as analog output.



Input:AC0~1A,0~5A,AC 0~120V,0~300V,0~500V


Output:DC 0-20mA/4-20mA/0-5V/0-10V


Power supply:AC 85~265V,DC 100V~350V,DC 24V


Accuracy:Class 0.5

Products

Parameters of BD-3I3 Three Phase Current Transducer

Type		BD-3I3,BD-3V3,BD-4V3
Accuracy		0.5 class,0.2 class
Input	Signal	AC0~1A,0~5A,AC 0~120V,0~300V,0~500V
	Overload	Current:continuous 1.2 times, instant current 10 times per second Voltage:continuous 1.2 imes, instant Voltage 10 times per second
	Frequency	45Hz~65Hz
Output	Signal	DC 4~20mA,0~20mA,0~5V,0~10V
	Load	Current output<600Ω,Voltage output1000Ω
	Optional function	/
Power Supply		AC 85~265V DC 100V~350V DC 24V/48V
Temperature drift coefficient		0.2class≤100ppm℃,0.5class≤200ppm℃
Response time		<400ms
Insulation resistance		≥100MΩ
Power frequency withstand voltage		Auxiliary power supply/Input / Output 2kV/1min,50Hz
Environment	Temperature	Work;-10℃~55℃ Store:-25℃~70℃
	Humidity	≤93%RH,places without condensation and corrosive gas
	Altitude	≤2500m

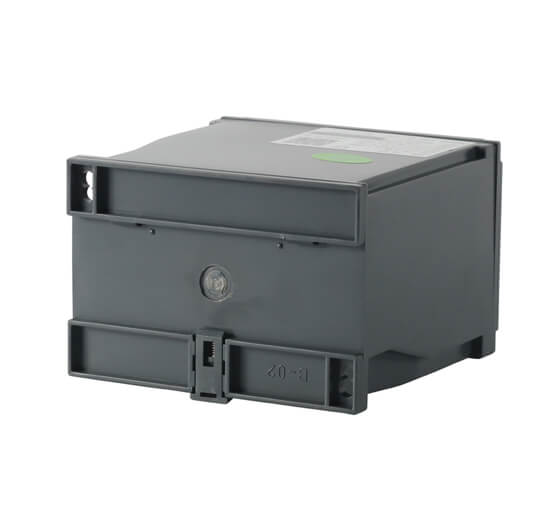

Installation mode		TS35mm din rail or screw fixing

Video of Three Phase Current Transducer

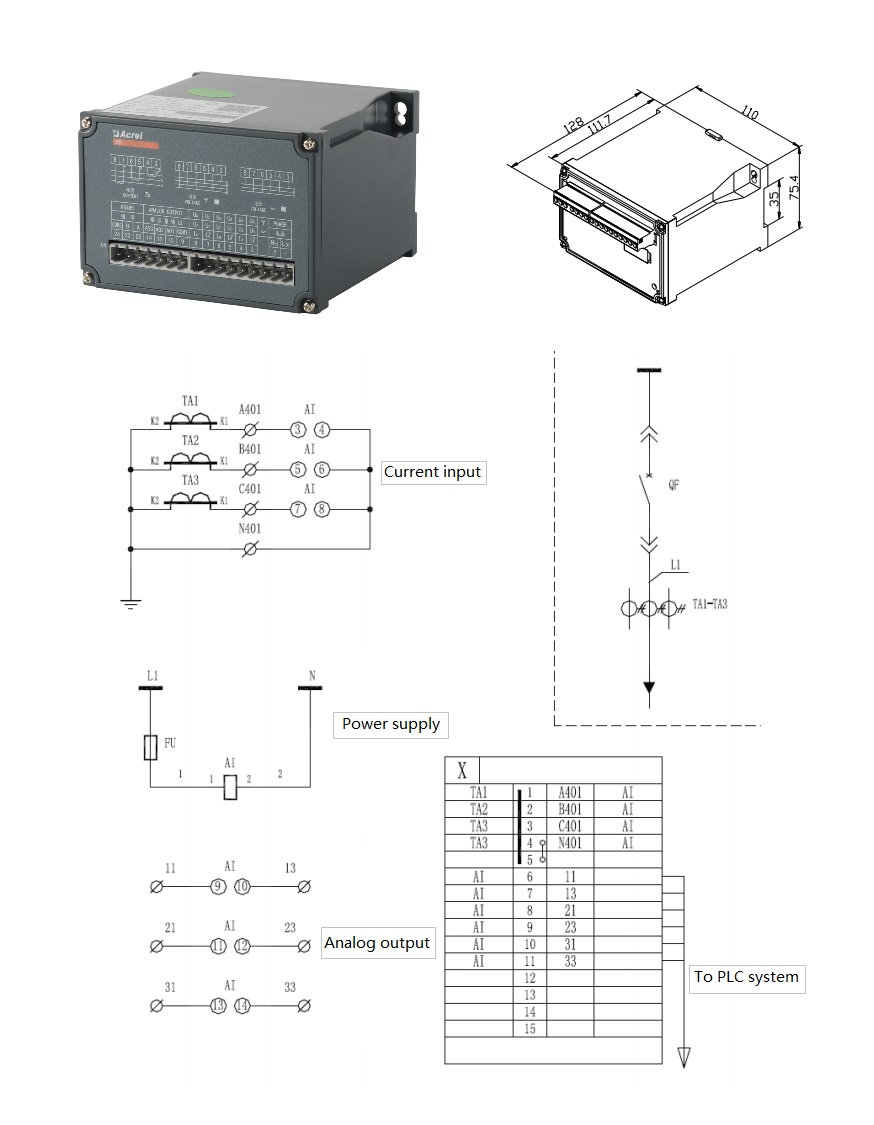

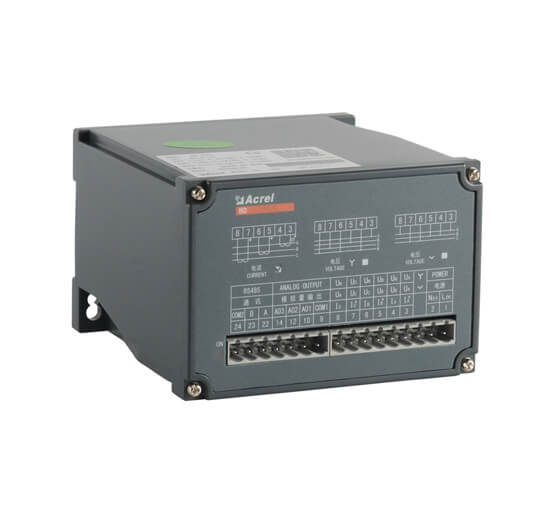

Wiring of BD-3I3 Three Phase Current Transducer

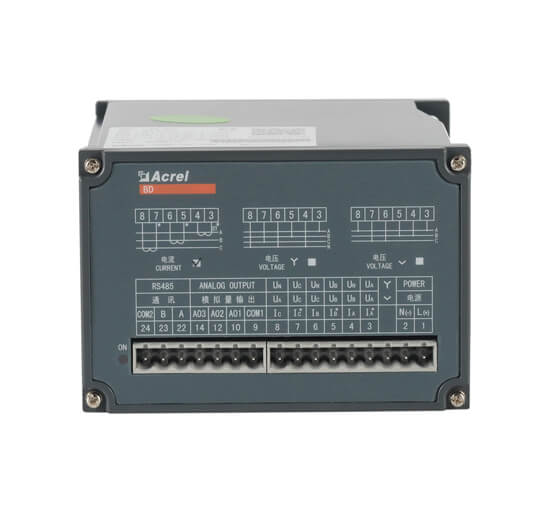

BD-3I3 Three Phase Current Transducer interface 3/4,5/6,7/8 is A/B/C phase current input,interface 1/2 power supply L/N(AC 85~265V,DC 100V~350V,DC 24V),interface 9/10/11/12 is the three channels analog output DC 4~20mA,0~20mA,0~5V,0~10V which can connect to PLC system etc.

Wiring of BD-3I3 Three Phase Current Transducer

Application of BD-3I3 Three Phase Current Transducer

Industrial automation
Photovoltaic and wind power industry
Metallurgy, electric power and oil field
Railway locomotive and shipping industry

Package of BD-3I3 Three Phase Current Transducer

MINIMUM PACKAGE
MINIMUM PACKAGE	Package dimensions(1 PC) 1715.512.5cm	Package Weight(1 PC) 0.55Kg

WHOLE BOX PACKAGE	Package dimensions(4 PCS) 45.52619.5cm	Package Weight(4 PCS) 3.2kG

PRODUCT HS CODE	9030339000
