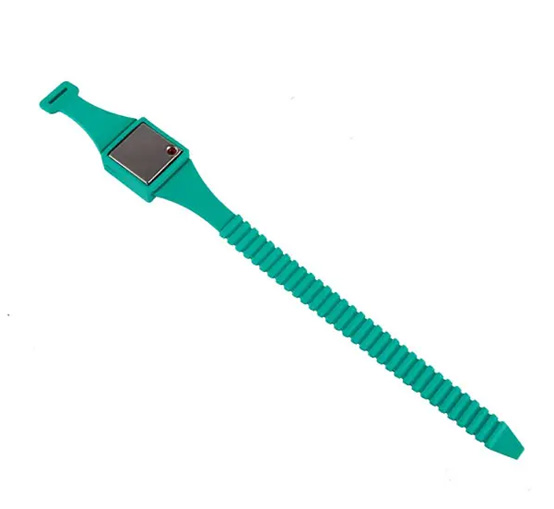

Acrel ATE200 Wireless Temperature Sensor

Name: ATE200 Wireless Temperature Sensor
Brand: Jiangsu Acrel Electrical Manufacturing Co., LTD.

ATE200 wireless temperature sensor can be installed separately in high-voltage cabinets and low-voltage drawer cabinets. Then use wireless data transmission technology to send monitoring data in real time, and then transmit the temperature data to the display device or remote monitoring system through the receiving device.

Products

Parameters of ATE200 Wireless Temperature Sensor

Wireless temperature sensor

ACREL Model	ATE100	ATE100M	ATE200	ATE400
Power supply	powered by battery			powered by CT sensing
Transmission frequency	470Mhz or 434Mhz
Sampling cycle	25s			15s
Transmission cycle	5min			15s
Measuring range	-50℃~125℃
Accuracy	±1℃
Communication distance	150m in open space
Operation Life	>5years(battery life)			>10years
Installation	Screw bolted installation	Magnetic installation	Belted installation	fixed by compound metal
Application	circuit breaker contact, busbar, cable contact and other big current

Transceiver

ACREL model	ATC450-C	ATC600
Power supply	DC24V	AC/DC 110V/220V
Installation	Din rail 35mm or screw fixed	Din rail 35mm
Communication	Modbus RTU RS485	Modbus RTU RS485
Extra function	No	Alarm output 2DO
