Acrel AHBC-LTA Closed-Loop Hall Effect Current Sensor

Name: AHBC-LTA Closed-Loop Hall Effect Current Sensor
Brand: Jiangsu Acrel Electrical Manufacturing Co., LTD.

Acrel AHBC series Hall effect current sensor based on the principle of closed-loop magnetic balance, capable of measuring DC, AC, and pulse. When the measured current passes through the direction of the sensor arrow, the in-phase current value can be measured at the output end.

AHBC-LTA Closed-Loop Hall Effect Current Sensor can measure AC, DC, pulse and other complex current signals. It has excellent accuracy, low temperature drift, wide frequency bandwidth, optimized response time.



Input: AC/DC 100~300A


Output: DC 50mA/100mA


Power supply: DC ±15V


Aperture: φ20mm

Products

Parameters of AHBC-LTA Closed-Loop Hall Effect Current Sensor

Parameters	Index
Rated Input Current	0~300A
Rated Output Voltage	50mA,100mA
Accuracy Class	0.5
Turns Ratio	1:3000
Power Voltage	DC ±12V~24V
Zero Offset Voltage	±20mV
Offset Voltage Drift	≤±1.0mV/℃
Linearity	≤0..05%FS
Response Time	≤1us
Bandwidth	0～100kHz
Isolation Voltage	3.5kV/50Hz/1min
Secondary coil resistance	56Ω
Operating Temperature	-40℃～85℃
Storage Temperature	-40℃～85℃
Power consumption current	20mA+1s

Video of Closed Loop Hall Effect Current Sensor

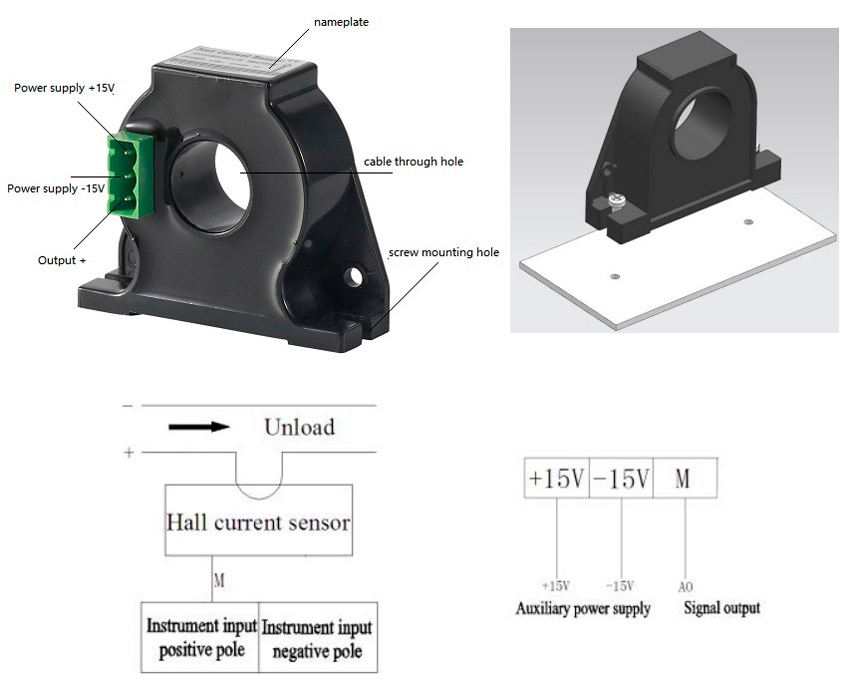

Installation of AHBC-LTA Closed-Loop Hall Effect Current Sensor

Note: The output signal "-" is connected to the power ground G, and the specific wiring is based on the terminal number on the physical shell. power positive and negative poles cannot be inversely connected.

Installation of AHBC-LTA Closed-Loop Hall Effect Current Sensor

Precautions of AHBC-LTA Closed-Loop Hall Effect Current Sensor

1. When the Hall sensor is used, attention must be paid to the coupling between the primary side coil and assistant side coil in order to get better dynamic characteristics and sensitivity, single conductor that should cram the thread hole of Hall sensor module completely is proposed to use.

2. When the Hall sensor is used, the best measuring accuracy can be got under rated input current value. When the measured current is much less than the rated value, the primary side can use multi-turns if want to obtain the best accuracy, that is IpNp=rated ampere-turns. In addition, the temperature of the primary side feeder line cannot be more than 80℃.

3. When the Hall current sensor is working normally, the auxiliary power supply cannot be more than ±20% of calibration value.

4. The Hall Current sensor is strictly prohibited to be fallen from high place (≥1m) during installation and use.

5. Zero and full scale regulator potentiometer can not be adjusted.

6. Auxiliary power supply is required to be deployed voluntarily.

7. Power positive and negative poles cannot be inversely connected.
