1. General
With the promotion and application of substation automation technology, there are more and more unmanned substations. The high-voltage switchgear in substations adopts a fully sealed structure, and in the course of long-term operation, parts such as switch contacts and busbar connections heat up due to aging or excessive contact resistance, and because the temperature of these heating parts cannot be monitored, the operating conditions of the equipment are getting worse and worse, and the probability of equipment accidents such as burning at the drawer inlet and outlet sides and inlet cabinet contacts in low-voltage switchgear increases greatly. Therefore, it is very necessary to carry out safe temperature monitoring and intelligent control. In this regard, our wireless temperature measurement series products for long-term temperature monitoring of each electrical node, can effectively avoid serious failure, resulting in personal injury and economic losses to users.

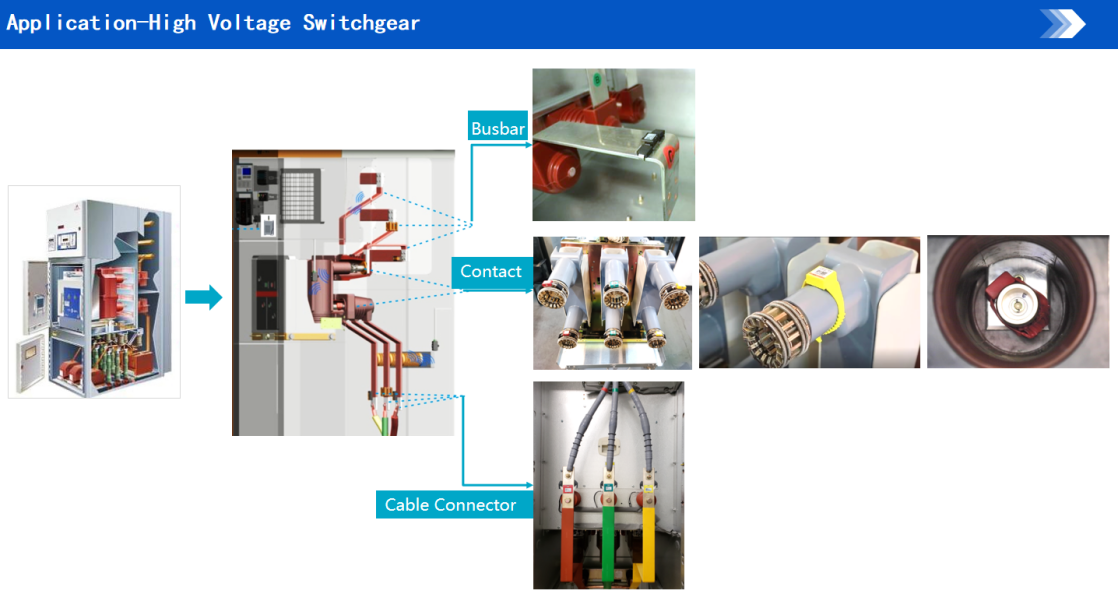

2. Application in High Voltage Switchgear
Cable connector temperature measurement
Contact temperature measurement
Busbar temperature measurement
Solutions
Product Selection
Model | Appearance | Parameter Description | Installation Method |
ATE200 |  | 35*35*17mm, L=330mm (L*W*H, strap) -50℃~+125℃, accuracy ±1℃. Built-in battery supply; 470MHZ (customization available), 150m open distance | Strap fixing |
ATE400 |  | 25.82*20.42*12.8mm(L*W*H) -50℃~+125℃, accuracy ±1℃. CT induction power extraction, starting current ≥5A; 470MHZ (customization available), 150m open distance | Alloy plate fixing |
ATC600-C |  | AC/DC85V-264V power supply; DC12-48V power supply; One RS485 interface; Maximum reception of 240 ATE200/400 temperature sensors | 35mm DIN rail installation |

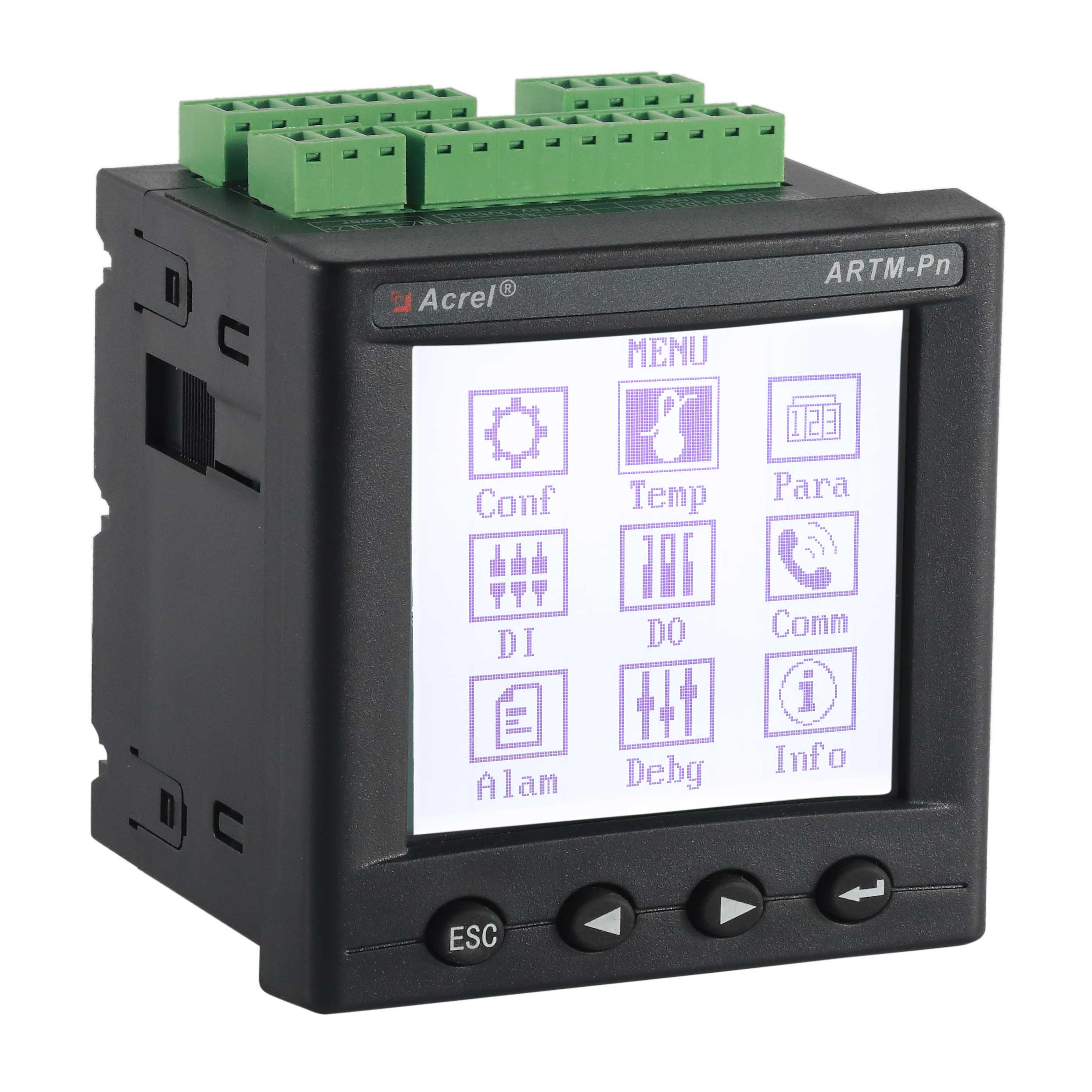

ARTM-Pn |  | Cutout 92*92mm, AC85-265V or DC100-300V power supply; one upstream RS485 interface; reception of 60 ATE200/400 wireless temperature sensors’ temperature (equipped with ATC500) | Embedded installation |
ATP007kt |
| Cutout 215*152mm; DC24V power supply; One upstream RS485 interface & Ethernet port; One downstream RS485 interface; Connecting 1 ATC600-C | Embedded installation |

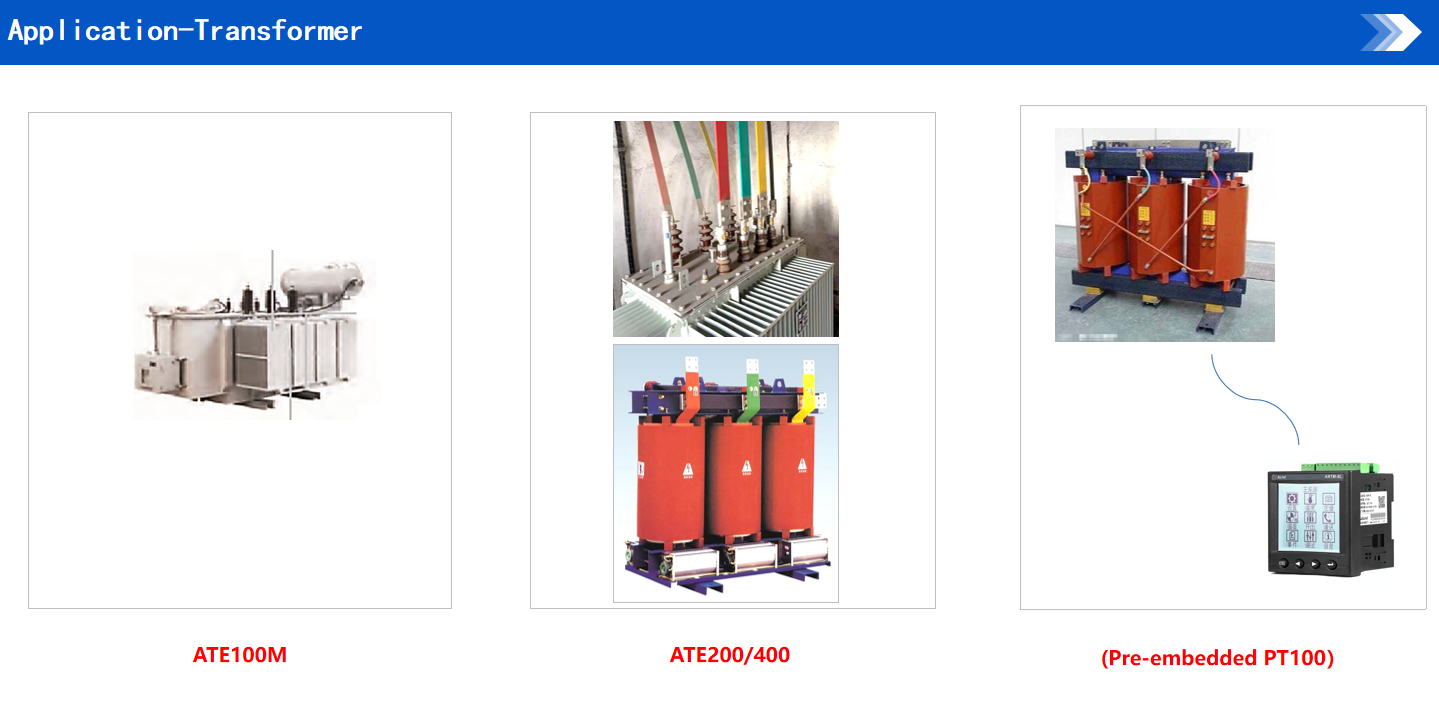

3. Application in Transformer
Transformer surface temperature measurement
Transformer connector temperature measurement
Transformer internal winding temperature measurement

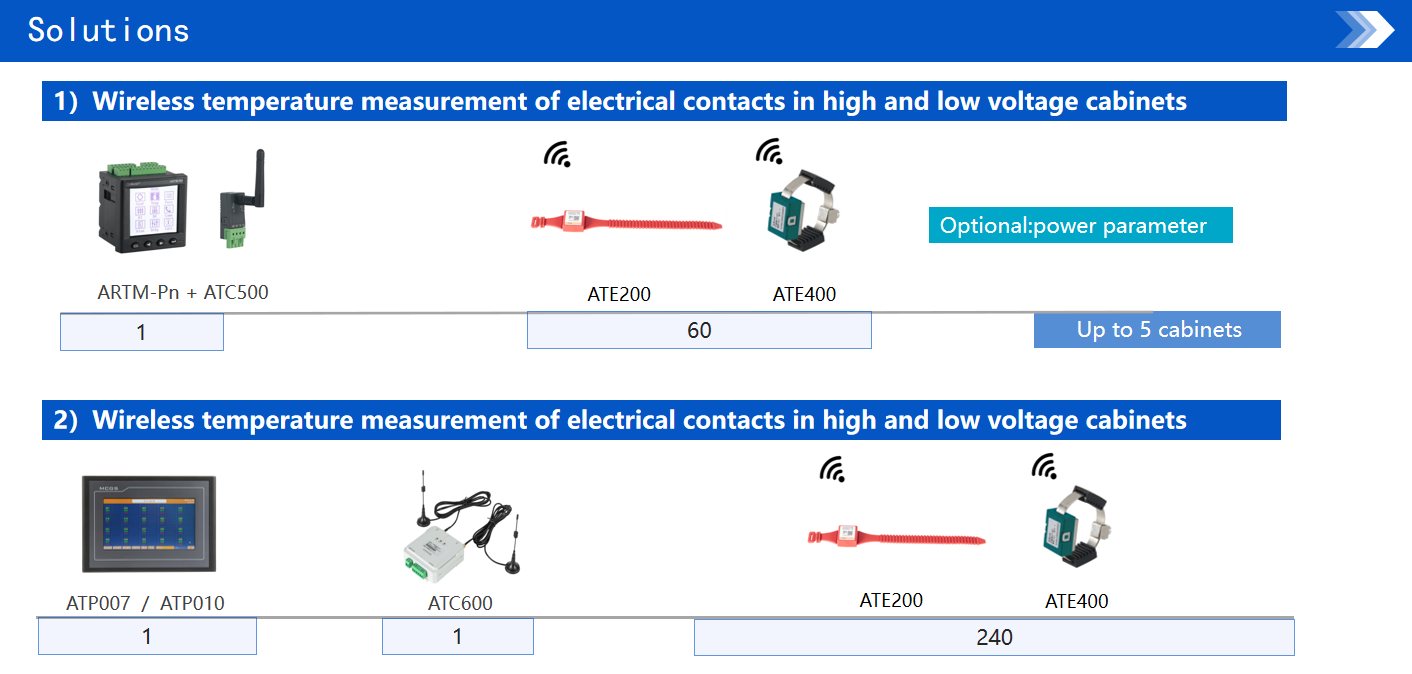

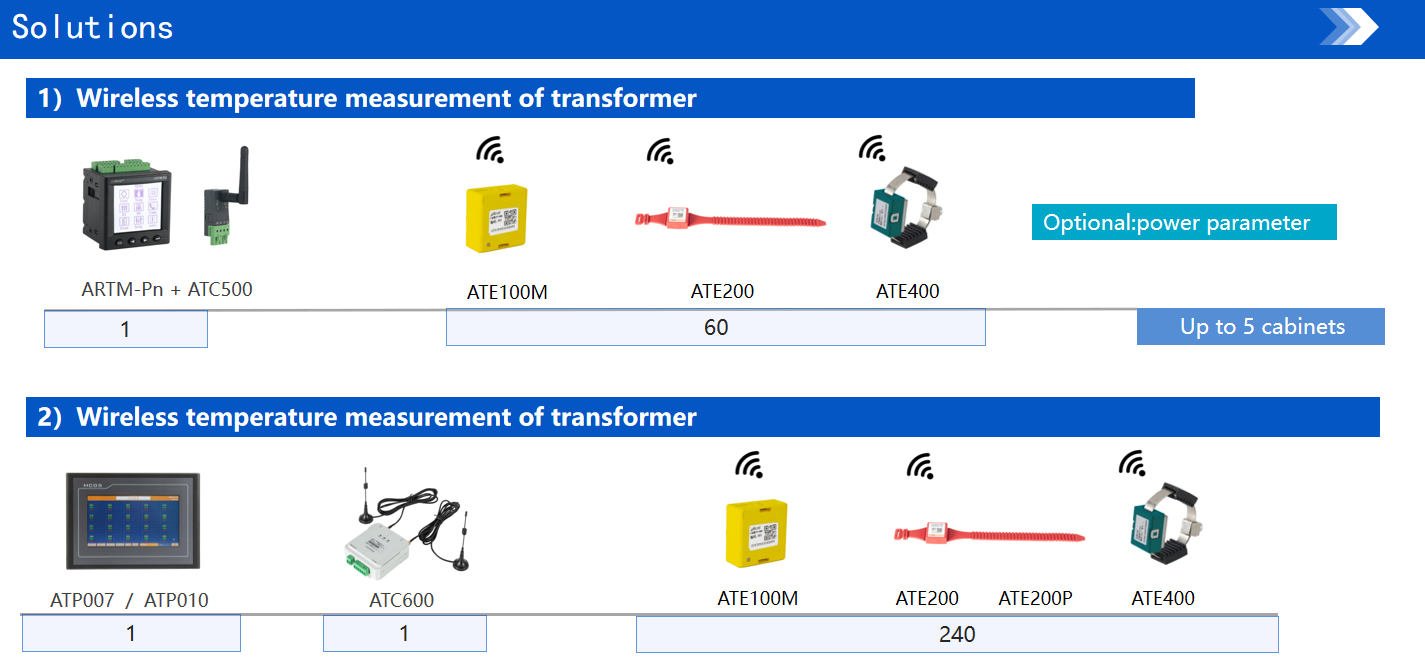

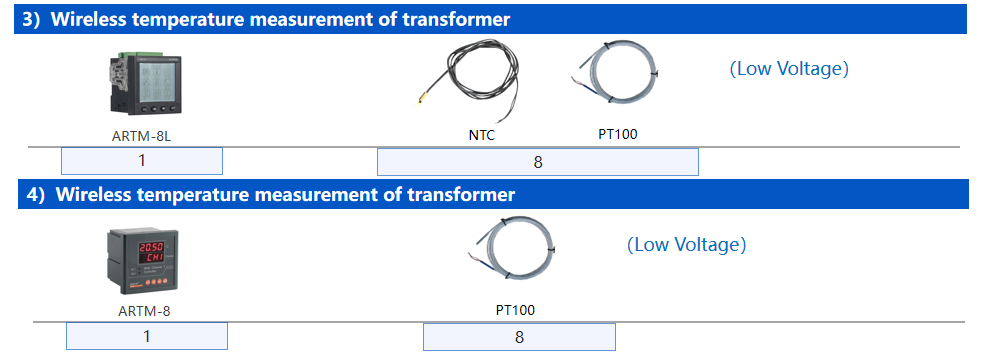

Solutions
Product Selection
Model | Appearance | Parameter Description | Installation Method |

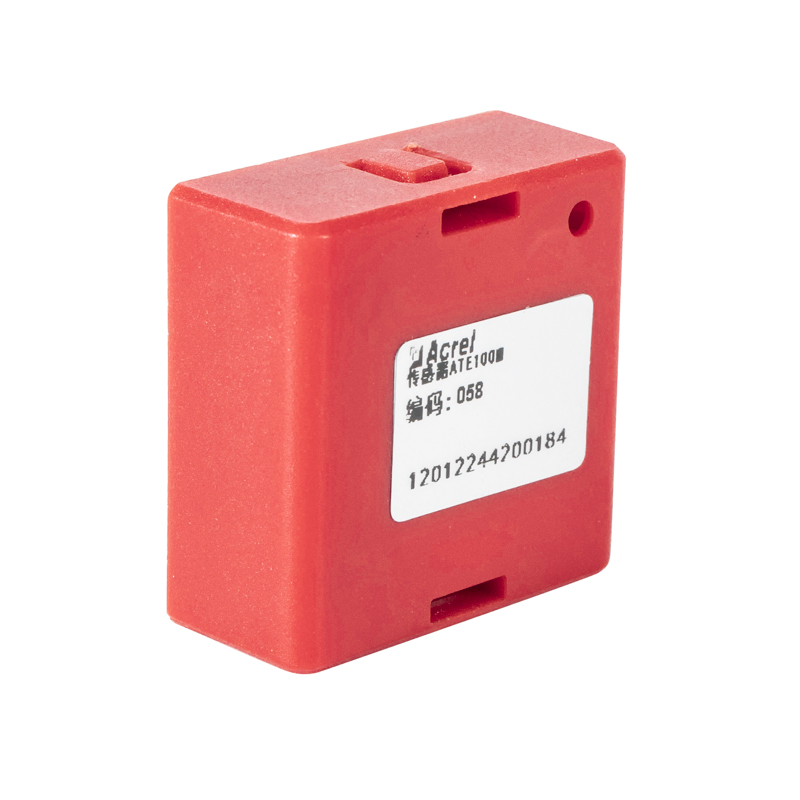

ATE100M |  | 32.4*32.4*16mm(L*W*H). -50℃~+125℃, Accuracy ±1℃. Built-in battery supply; 470MHZ(customization available), 150m open distance. | Magnetic fixing |
ATE200 |
| 35*35*17mm, L=330mm (L*W*H, strap) -50℃~+125℃, accuracy ±1℃. Built-in battery supply; 470MHZ (customization available), 150m open distance. | Strap fixing |

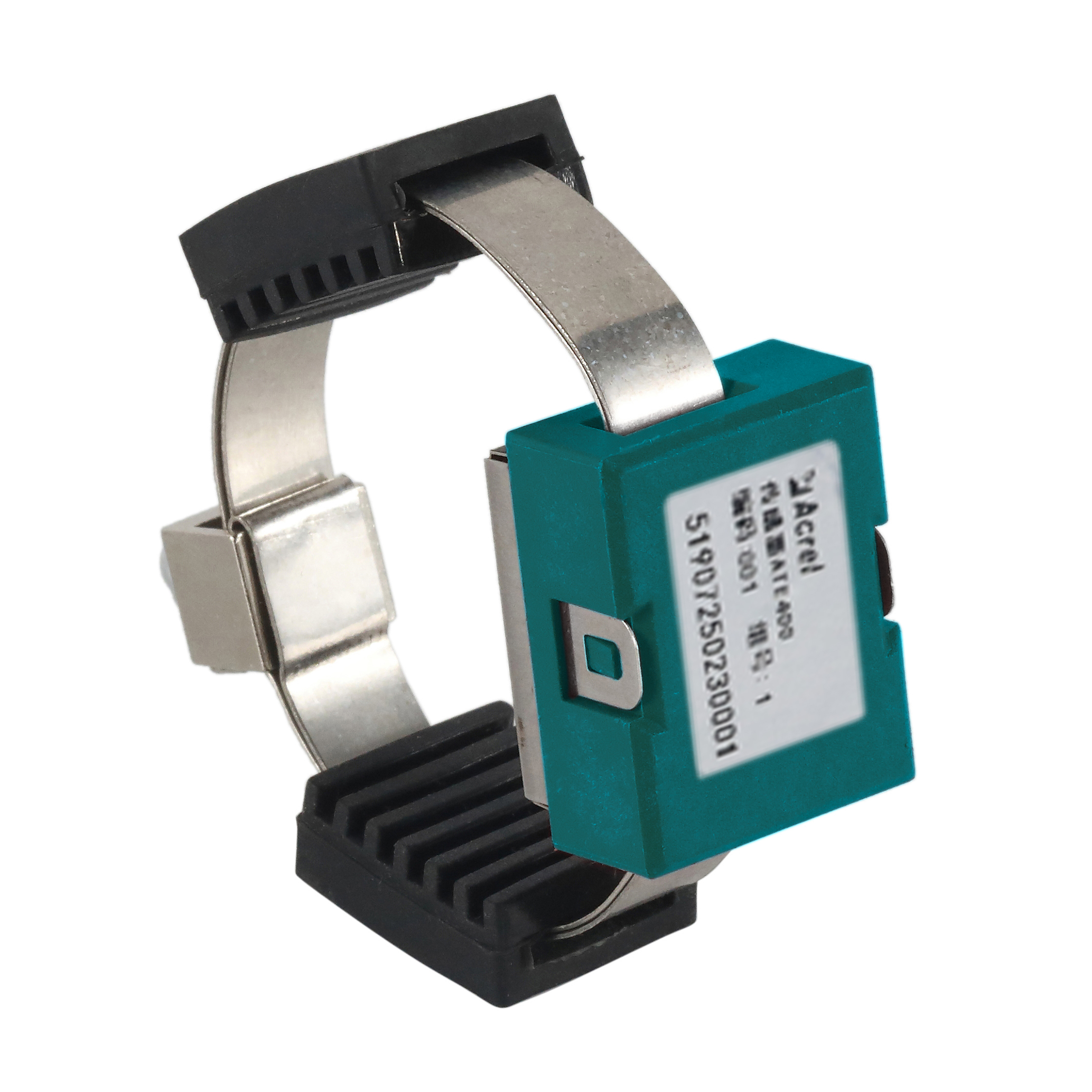

ATE400 |
| 25.82*20.42*12.8mm(L*W*H) -50℃~+125℃, accuracy ±1℃. CT induction power extraction, starting current ≥5A; 470MHZ (customization available) 150m open distance. | Alloy plate fixing |
ATC600-C | | AC/DC85V-264V power supply; DC12-48V power supply; One RS485 interface; Maximum reception of 240 ATE200/400 temperature sensors | 35mm DIN rail installation |
ARTM-Pn | | Cutout 92*92mm, AC85-265V or DC100-300V power supply; One upstream RS485 interface; Reception of 60 ATE200/400 wireless temperature sensors’ temperature (equipped with ATC500) | Embedded installation |

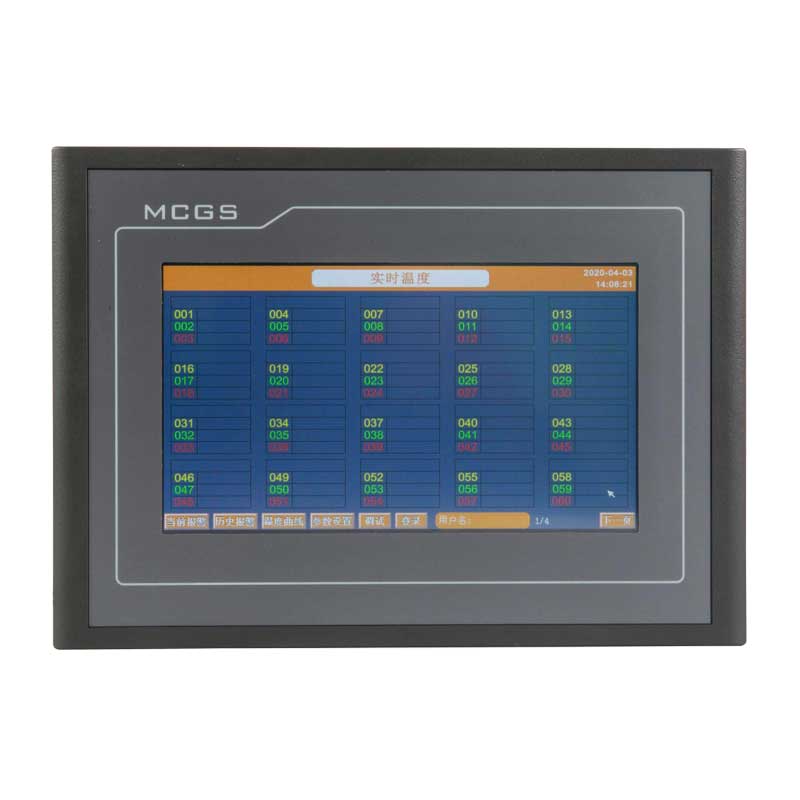

ATP007kt | | Cutout 215*152mm; DC24V power supply; One upstream RS485 interface & Ethernet port; One downstream RS485 interface; Connecting 1 ATC600-C | Embedded installation |

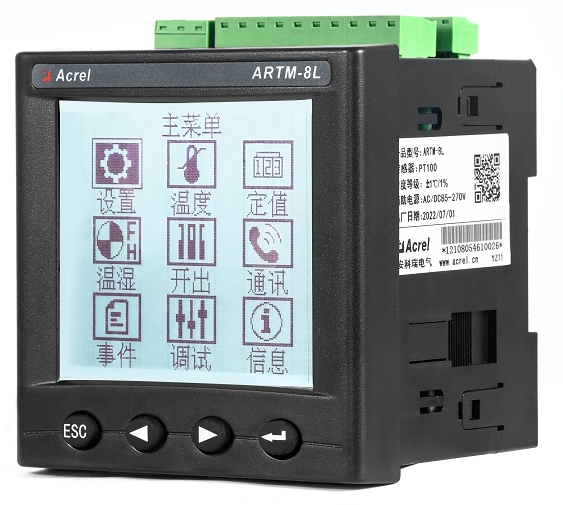

ARTM-8L |
| Panel: 92*92mm; AC/DC 85~265V power supply; RS485 Modbus-RTU; 8-channel Pt100/NTC/thermocouple/0~5V; 5-channel alarm output, 3-channel 4-20mA output; Optional: 1-channel temperature and humidity measurement | Embedded installation |

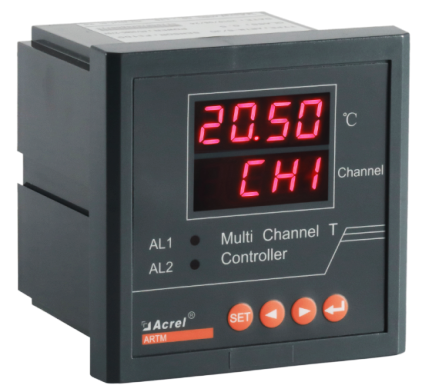

ARTM-8 |
| Cutout 88*88mm; AC85-265V or DC100-300V power supply; one upstream RS485 interface, can be connected to an 8-channel Pt100 sensor | Embedded installation |

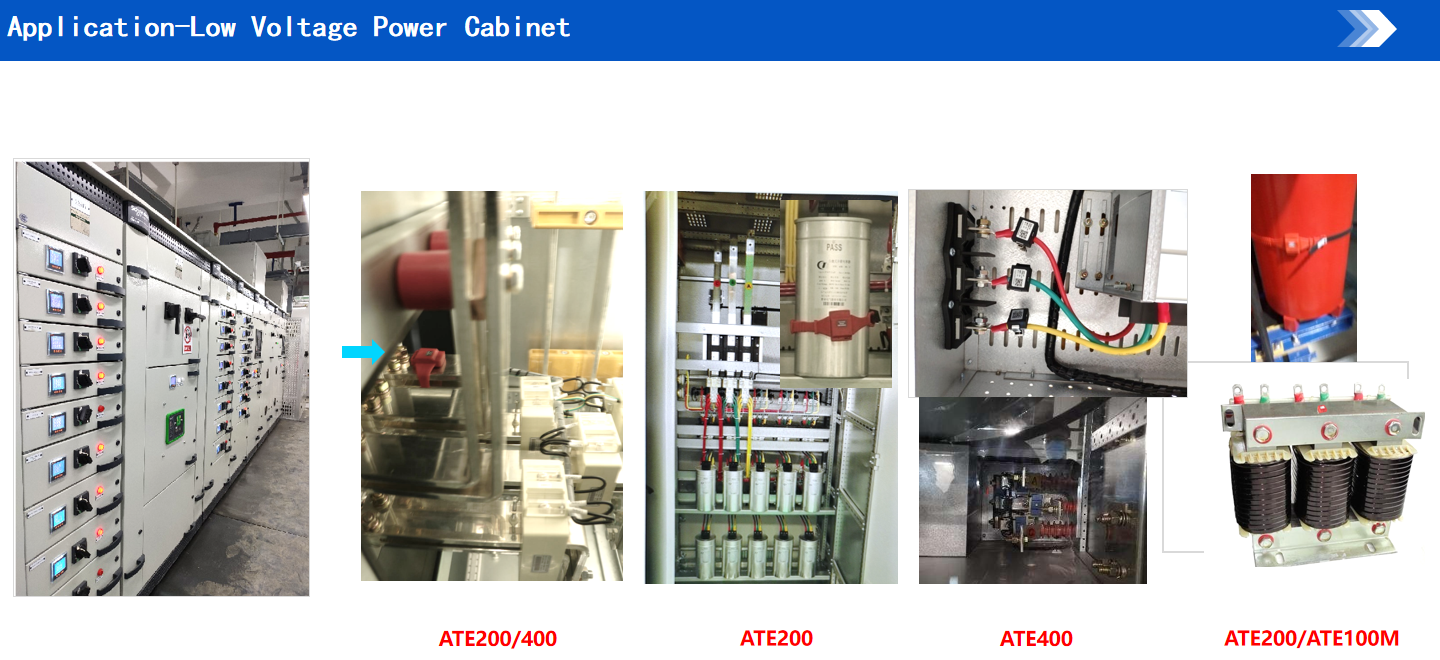

4. Application in Low Voltage Power Cabinet
CB connector/busbar temperature measurement
Capacitor surface temperature measurement
Cable joins temperature measurement
Reactor surface temperature measurement

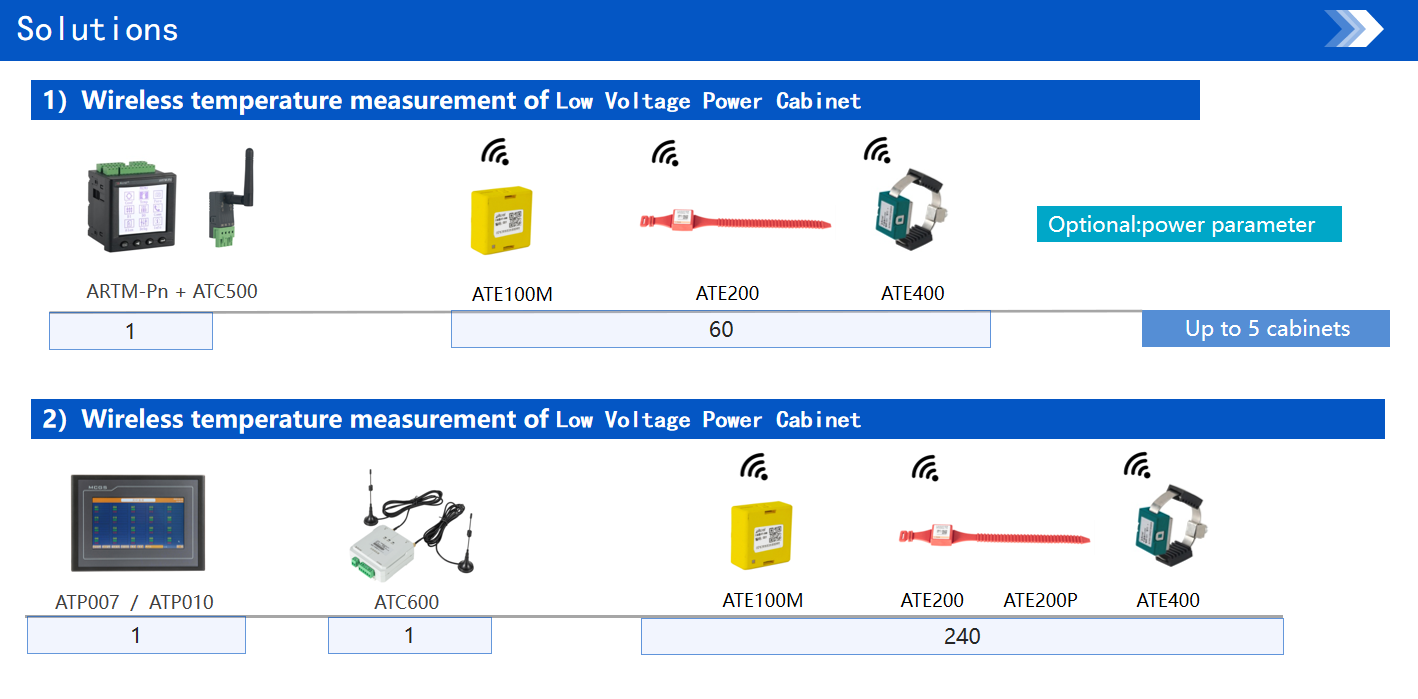

Solution
Product Selection
Model | Appearance | Parameter Description | Installation Method |
ATE100M | | 32.4*32.4*16mm(L*W*H). -50℃~+125℃, Accuracy ±1℃. Built-in battery supply; 470MHZ(customization available), 150m open distance. | Magnetic fixing |

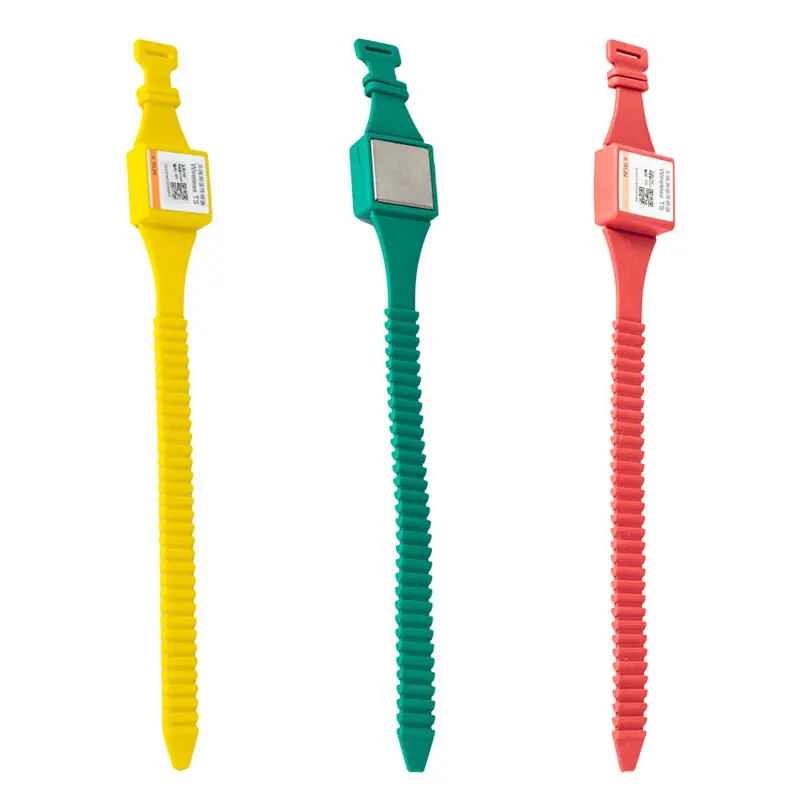

ATE200 | | 35*35*17mm, L=330mm (L*W*H, strap) -50℃~+125℃, accuracy ±1℃. Built-in battery supply; 470MHZ (customization available), 150m open distance. | Strap fixing |
ATE400 | | 25.82*20.42*12.8mm(L*W*H) -50℃~+125℃, accuracy ±1℃. CT induction power extraction, starting current ≥5A; 470MHZ (customization available) 150m open distance. | Alloy plate fixing |
ATC600-C | | AC/DC85V-264V power supply; DC12-48V power supply; One RS485 interface; Maximum reception of 240 ATE200/400 temperature sensors | 35mm DIN rail installation |
ARTM-Pn | | Cutout 92*92mm, AC85-265V or DC100-300V power supply; One upstream RS485 interface; Reception of 60 ATE200/400 wireless temperature sensors’ temperature (equipped with ATC500) | Embedded installation |
ATP007kt | | Cutout 215*152mm; DC24V power supply; One upstream RS485 interface & Ethernet port; One downstream RS485 interface; Connecting 1 ATC600-C | Embedded installation |

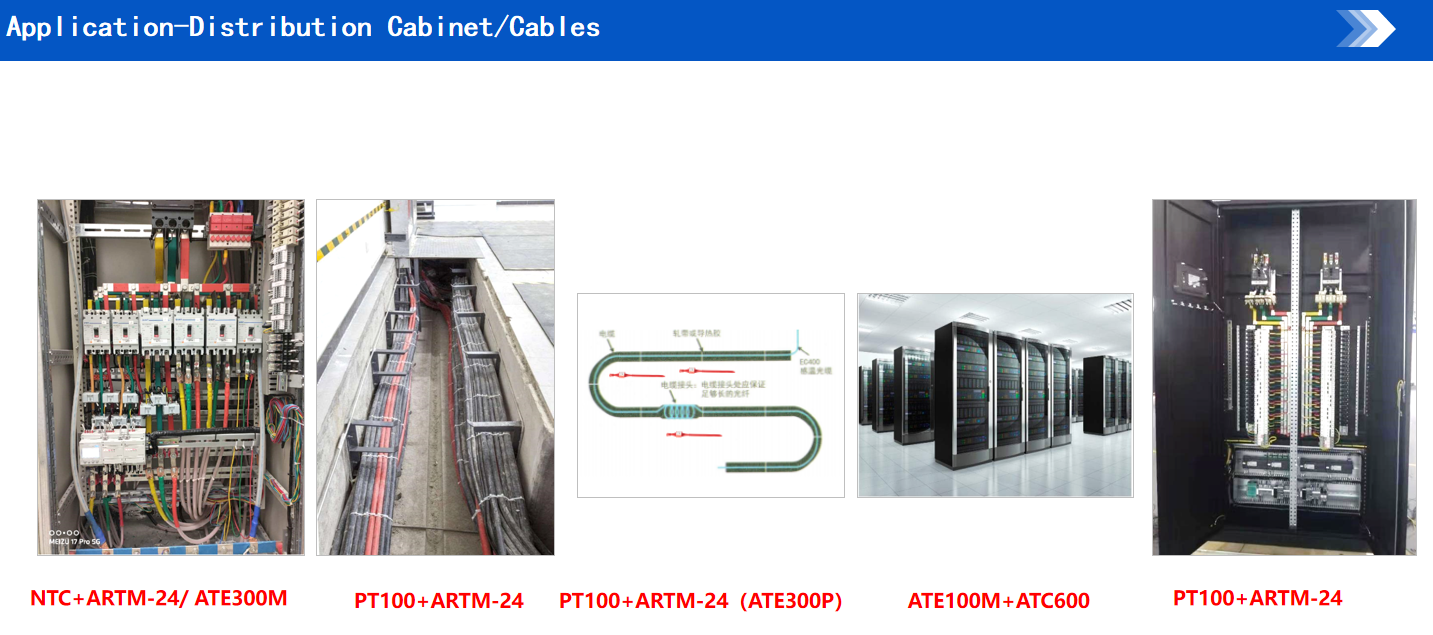

5. Application in Distribution Cabinet/Cables
Terminal distribution cabinet temperature measurement
Cable trench temperature measurement
Indoor long cable/bridge/busway shell temperature measurement
Data center server temperature measurement
Data center cabinet connector temperature measurement

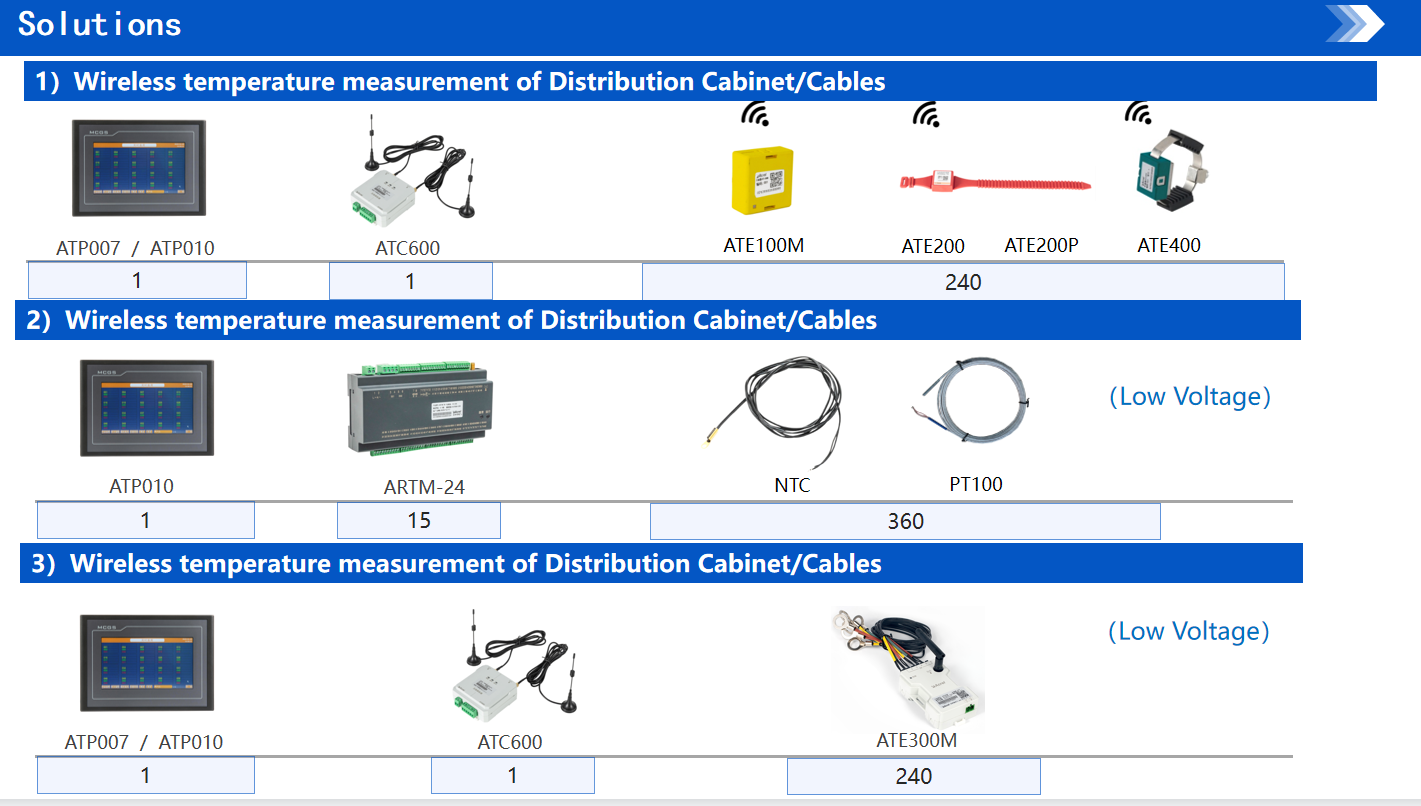

Solution
Product Selection
Model | Appearance | Parameter Description | Installation Method |
ATE100M |
| 32.4*32.4*16mm(L*W*H). -50℃~+125℃, Accuracy ±1℃. Built-in battery supply; 470MHZ(customization available), 150m open distance. | Magnetic fixing |
ATE300M |  | AC/DC85V-264V power supply; -40℃~+140℃, accuracy ±1℃. 6-channel NTC sensor access; 470MHZ (customization available), 1000m open distance. | 35mm DIN rail installation |

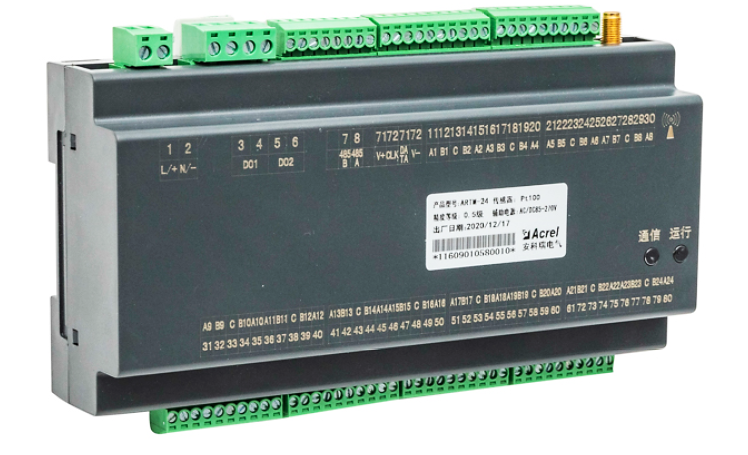

ARTM-24 |  | AC/DC 110/220V, DC12~48V power supply; One upstream RS485 interface; Optional Lora 24-channel sensor access: NTC/PT100/PT1000/thermocouple 2-channel alarm output | 35mm DIN rail installation |

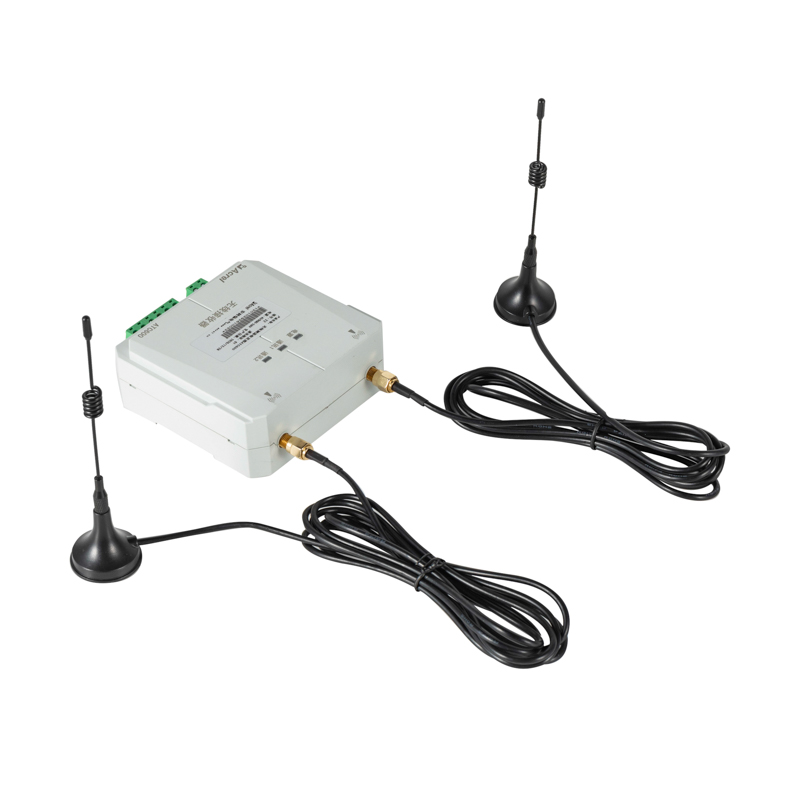

ATC600-C | | AC/DC85V-264V power supply; DC12-48V power supply; One RS485 interface; Maximum reception of 240 ATE200/400 temperature sensors | 35mm DIN rail installation |
ATP007kt | | Cutout 215*152mm; DC24V power supply; One upstream RS485 interface & Ethernet port; One downstream RS485 interface; Connecting 1 ATC600-C | Embedded installation |

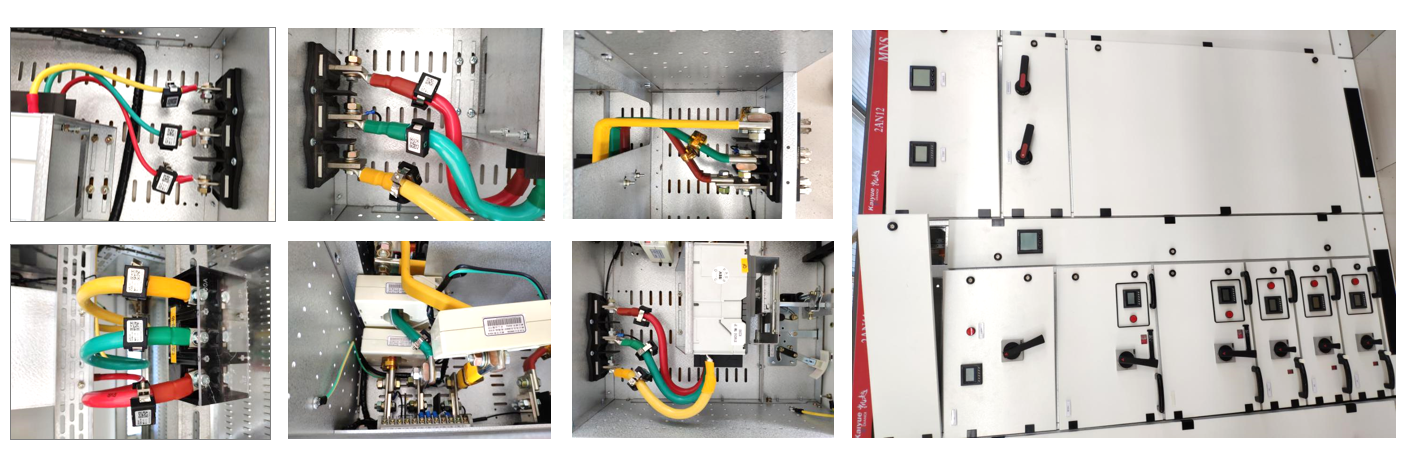

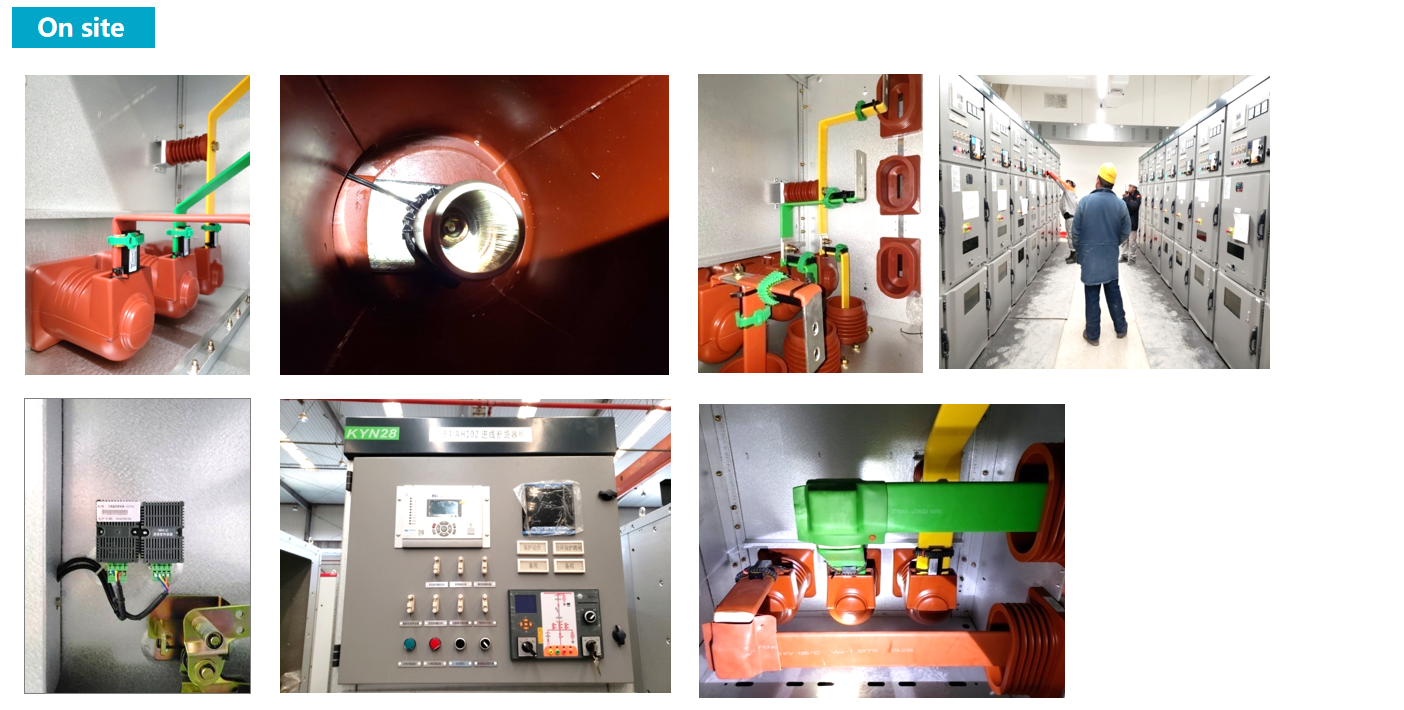

6. Site Picture
In summary, to prevent the contact resistance increasing and contacts overheating formed during operation due to oxidation, loosening, dust and other factors that cause the safety hazards , improve the safety and security of equipment, timely, continuous and accurate reflection of equipment operating conditions, reduce the rate of equipment accidents, high and low voltage switchgear within the cable joints, circuit breaker contacts, knife switch, high voltage cable intermediate head, dry transformers, low voltage high current and other equipment temperature monitoring is very necessary.
